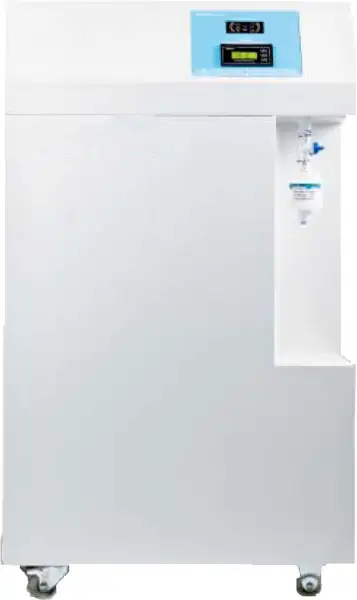

Large Capacity Water Purification System BCPS-104
Large Capacity Water Purification System
This series is idea choice for general washing pure water. It's output ranges from 45 to 500 liter of water an hour. It has automatic microcomputer controlling system, real-time animation mode display. Pipeline and fast-plug adapter with NSF authorization, assure high-quality ultrapure water.
- Independent power control and automatic operation, easy to install, use and maintain.
- Integrate level control, pressure pump, buffer tank and inlet valves together.
- It is unnecessary to connect to the circuit of pure water main-body. It can run automatically according to liquid lever of the tank.
- Optional UV lamp module, to restrain bacteria's increase and reduce TOC.
Old SKU: BEU1T4
Get Quote
Download Catalog
Specifications
| Model | BCPS-104 |
| Water Inlet | Tap water: TDS<200 ppm (Extra pretreatment filter is recommended, if TDS>200 ppm) |
| Temperature | 5-45°C |
| Pressure | 1.0-4.0 Kgf/cm² |
| Flow Procedure** | PF+AC+RO+AC |
| Ion rejection rate | 96%-99% (New RO membrane) |
| Organic rejection rate | >99%, when MW>200 Dalton |
| Particles and bacteria rejection rate | >99% |
| Bacteria | <0.1 cfu/ml (with optional 0.2μm PES terminal filter) |
| Particles(>0.2μm) | <1/ml (with optional 0.2 μm PES terminal filter) |
| Output(25°C)**** | 125 L/hr |
| Pure water outlet | RO water |
| Water Quality Monitor | Portable TDS/conductivity test pen + on-line conductivity monitor |
| DimensionLxWxH | 640x540x1110 mm |
| Weight | 70 kg |
| Standard configuration | Main body (Including 1 set of cartridges)+ 2 built-in15 liters tank+ TDS pen +accessory bag |
| Power Consumption (W) | 240 W |
| Power Supply | AC110-220 V, 50/60 Hz |
| Note | *The feed water quality will influence the pure water's quality and cartridges life-span. **PF:polypropylene spun fiber, AC:active carbon, RO:reverse osmosis. ***All the specifications are tested under the situation:feed water's TDS=200ppm, 25°C, 50psi and 15% recovery rate. |
Features
Independent power control and automatic operation, easy to install, use and maintain.
Integrate level control, pressure pump, buffer tank and inlet valves together.
It is unnecessary to connect to the circuit of pure water main-body. It can run automatically according to liquid lever of the tank.
Optional UV lamp module, to restrain bacteria's increase and reduce TOC.
Integrate level control, pressure pump, buffer tank and inlet valves together.
It is unnecessary to connect to the circuit of pure water main-body. It can run automatically according to liquid lever of the tank.
Optional UV lamp module, to restrain bacteria's increase and reduce TOC.
Applications
Food Industry, Beverage Industry, Agriculture, Boiler Feed, Disaster Relief Environmental, Hospital, Hotel, Marine, Military, Mining, Pharmaceutical, Power
