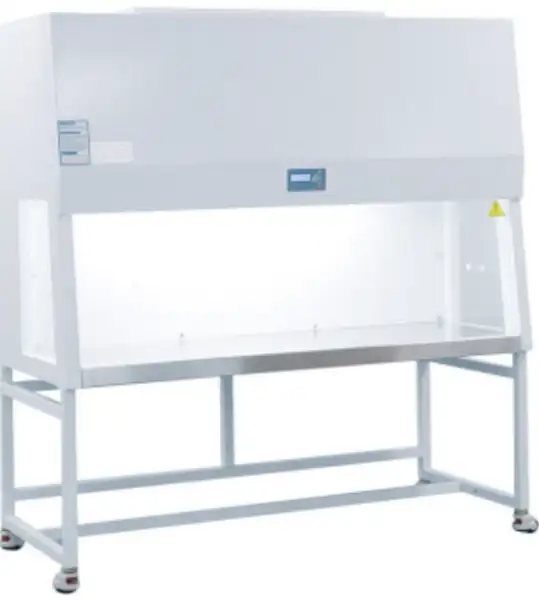

Horizontal Laminar Airflow BEM-23301
Horizontal Laminar Flow Cabinet
Key Features
SKU: BEM-23301
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇳🇬 Nigeria , 🇭🇰 Hong Kong , 🇩🇪 Germany , 🇹🇹 Trinidad and Tobago
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BEM-23301 |
| Internal Size (W*D*H) | 1200*520*570mm |
| External Size (W*D*H) | 1300*820*1940mm |
| Work Surface Height | 750 mm |
| Max Opening | 430 mm |
| Display | LCD display |
| Airflow Velocity | 0.30-0.5 m/s |
| Working Area Material | 304 stainless steel |
| Main Body Material | 1.0 mm cold-rolled steel with antibacterial powder coating |
| Front Window Material | 5 mm toughened glass, anti-UV |
| Pre-Filter | Polyester fiber |
| HEPA Filter | One, 99.995% efficiency at 0.3 μm |
| Front Window | Motorized |
| Noise | ≤65 dB(A) |
| Illumination | ≥300 Lux |
| Vibration | ≤5 μm (RMS) |
| Safety | Colonies Number ≤0.5 CFU/30 min |
| Clean Level | ISO Level 5 (Class 100) |
| Waterproof Sockets | Two sockets, max. power 1000 W |
| Power Supply | AC 220 V ±10%, 50/60 Hz (Standard); 110 V ±10%, 60 Hz (Optional) |
| Consumption | 400 W |
| LED Lamp | 12 W x 1 |
| UV Lamp | 30 W x 1 |
| Standard Accessories | Base stand, LED lamp, UV lamp, waterproof sockets x2, gas tap |
| Package Size (WxDxH) | 1450x1140x1540 mm |
| Gross Weight | 255 kg |
