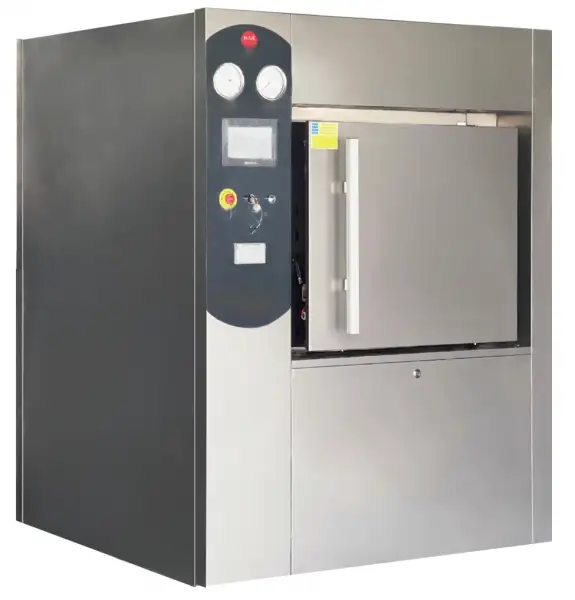

Horizontal Autoclave BKM-202
Pulsating Vacuum Pressure Large Steam Sterilizer
The equipment consists of two layers, inner and outer. The inner liner is made of high-quality 304 stainless steel, which is automatically welded and formed in one go. The jacket is made of Q345R high-quality pressure vessel special steel plate and has a standard GMP verification interface, making it convenient for users to perform equipment verification at...
Key Features
- Pulse vacuum sterilizer is a sterilization equipment that uses a programmable logic controller (PLC) and touch screen microcomputer automatic control with saturated pressure steam as the medium.
- The equipment uses pulsating vacuum exhaust to eliminate the influence of cold air on temperature in the early stage, and after sterilization, vacuum dehumidification and sandwich drying are used to dry the items.
- The human-machine interface adopts a graphical operation terminal, and multiple automatic and manual programs such as "B-D test, instruments, fabrics, liquids" are set up. It is suitable for sterilization of clothing, dressings, instruments, vessels, culture media and other materials in hospital supply rooms, operating rooms, pharmaceutical factories, and research departments.
SKU: BKM-202
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BKM-202 |
| Capacity | 360L |
| Sterilization Temperature | |
| Working Pressure | |
| Features | |
| Inner Chamber Size (L x W x H, mm) | 1000 x 600 x 600 |
| Overall Size (L x W x H, mm) Single/Double Door | 1340 x 1350 x 1900 |
| Net Weight (kg) | 800 |
| Steam Consumption (kg/cycle) | 25 |
| Control Power (AC 220V/50Hz) | 0.5 |
| Power Supply (3AC 380V/50Hz) | 1.5 |
| Water Consumption (L/cycle) | 60 |
Product Features
Key design, performance, usability, and safety advantages.
Pulse vacuum sterilizer is a sterilization equipment that uses a programmable logic controller (PLC) and touch screen microcomputer automatic control with saturated pressure steam as the medium.
The equipment uses pulsating vacuum exhaust to eliminate the influence of cold air on temperature in the early stage, and after sterilization, vacuum dehumidification and sandwich drying are used to dry the items.
The human-machine interface adopts a graphical operation terminal, and multiple automatic and manual programs such as "B-D test, instruments, fabrics, liquids" are set up. It is suitable for sterilization of clothing, dressings, instruments, vessels, culture media and other materials in hospital supply rooms, operating rooms, pharmaceutical factories, and research departments.
Applications Explore common laboratory, research, industrial, and process applications.
Widely used in the medical sector, drug testing, epidemic prevention, food, pharmaceutical and other biotechnology industries, as well as research institutes. Used as a disinfectant for surgical instruments, dressings, drugs, culture media, food, etc.
