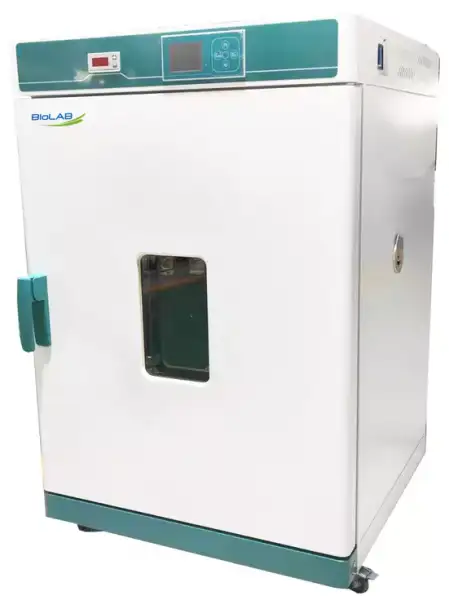

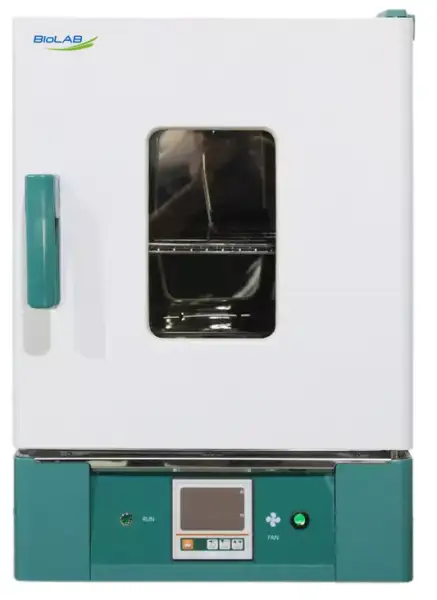

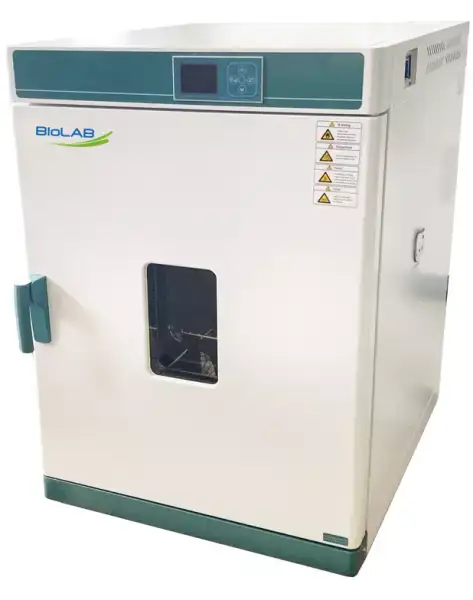

Forced Convection Drying Oven BODR-306

Forced Air Drying Oven
Key Features
  • 1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
  • 2. PID controller, with over-temperature protection function.
  • 3. With fan switch,LED digital display,high temperature blast motor.
  • 4. New anti-hot handle.
SKU: BODR-306
Old SKU: BER1B14
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇦🇪 United Arab Emirates , 🇻🇳 Vietnam , 🇵🇾 Paraguay , 🇮🇸 Iceland
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBODR-306
Capacity625L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberMirror Stainless Steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel heater
Power Rating4.0kW
Exhaust HoleΦ63mm top
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature display on upper LCD screen, setting temperature display on the lower row
Timer0-9999min(with timing wait function)
Operation FunctionOperation Function Fixed temperature operation, timing function, auto stop.
Additional FunctionHigh precision digital independent temperature limiter. Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
Inner Chamber size(W*L*H)(mm)760*660*1250
Exterior Size (W*L*H)(mm)902*942*1739
Packing Size (W*L*H)(mm)1032*1009*1925
Max. Shelf Number11
Load Per rack15kg
Shelf Space100mm
Power Rating (50/60HZ)AC380V/6.0A
NW/GW (kg)150/190
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, U-disk storage;3.5-inch color touch screen temperature controller
Fan SwitchesThis models don't have fan switches.

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4. New anti-hot handle.
Applications Explore common laboratory, research, industrial, and process applications.

Used for drying, baking, wax, heat treatment.
