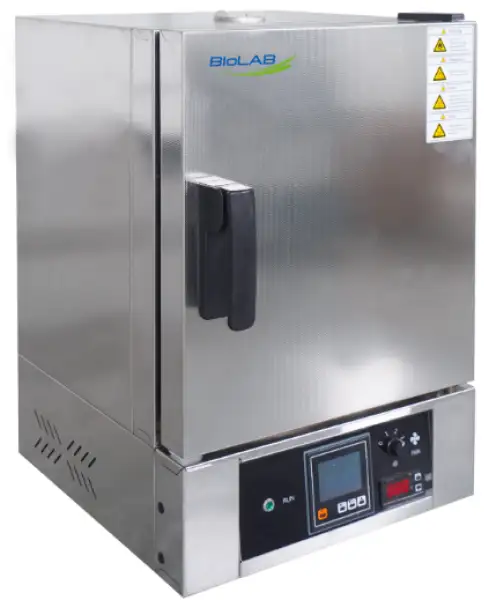

Forced Convection Drying Oven BER-8306

Drying Oven / Incubator (double Function)
Key Features
  • 1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
  • 2. PID controller, with over-temperature protection function.
  • 3. With oven/incubator change switch, fan switch; and high-temperature blast motor.
  • 4. New anti-hot handle.
  • 5. LCD temperature controller.
  • 6. 4 grades speed fan, adjustable for different requirements.
  • 7. Over-temperature protection system.
  • 8. High precision digital independent temperature limiter.
SKU: BER-8306
Old SKU: BER1DF6
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇧🇭 Bahrain , 🇨🇮 Cote D'ivoire , 🇮🇶 Iraq , 🇧🇧 Barbados
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-8306
Capacity230L
Temperature RangeIncubator:RT+5-80°C Drying oven:80-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberSUS 304
Outer ShellSUS 304 embossed stainless steel shell
Insulation LayerHigh quality rock wool board (with CE)
HeaterStainless steel heater
Power Rating3.0kW
Exhaust HoleRear exhaust
Controller
Temp. Control ModePID Two temperature section intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeLCD Digital display
Timer0-9999min (with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory.
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Overtemperature sound-light alarm.
Specification
Inner Chamber Size(W*L*H)(mm)600*500*750
Exterior Size(W*L*H)(mm)735*835*1115
Packing Size(W*L*H)(mm)857*885*1287
Max. Shelf Number17
Load Per rack15kg
Shelf Space40mm
Power Rating (50/60Hz)AC220V/13.6A
NW/GW (kg)94/120
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, remote control, U-disk storage; wireless SMS alarm, 4.3 inch color touch screen temperature controller.

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With oven/incubator change switch, fan switch; and high-temperature blast motor.
4. New anti-hot handle.
5. LCD temperature controller.
6. 4 grades speed fan, adjustable for different requirements.
7. Over-temperature protection system.
8. High precision digital independent temperature limiter.
