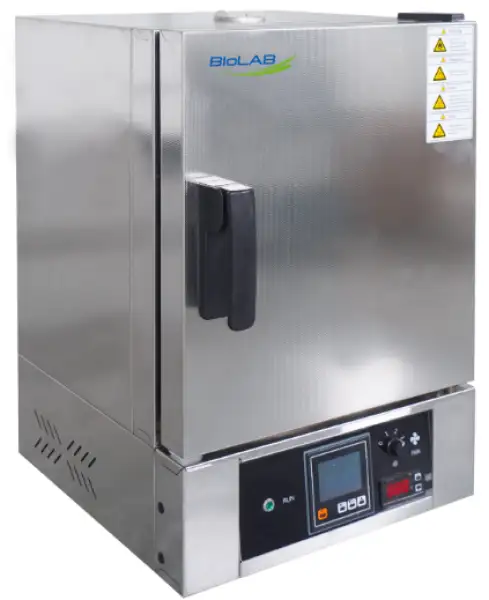

Forced Convection Drying Oven BER-8105

Hot Air Sterilizing Drying Oven
Key Features
  • 1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
  • 2. PID controller, with over-temperature protection function.
  • 3. New anti-hot handle.
  • 4. LCD temperature controller.
  • 5. 4 grades speed fan, adjustable for different requirements.
  • 6. Over-temperature protection system.
  • 7. High precision digital independent temperature limiter.
SKU: BER-8105
Old SKU: BER1DD5
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇺🇬 Uganda , 🇳🇬 Nigeria , 🇪🇸 Spain , 🇫🇮 Finland
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-8105
Capacity125L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberSUS304
Outer ShellSUS304
Insulation LayerHigh quality rockwool board (with CE)
HeaterStainless steel heater
Power Rating2.3kW
Exhaust HoleΦ35mm top (with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeLCD Digital display
Timer0-9999min (with timing wait function)
Operation FunctionFixed temperature operation, fixed timing operation, auto stop.
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory.
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
Inner Chamber Size(W*L*H)(mm)500*450*550
Exterior Size(W*L*H)(mm)636*680*915
Packing Size(W*L*H)(mm)710*730*1100
Max. Shelf Number11
Load Per rack15kg
Shelf Space40mm
Power Rating (50/60Hz)AC220V/10.5A
NW/GW (kg)60/66
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, U-disk storage; 4.3 inch color touch screen temperature controller.

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. New anti-hot handle.
4. LCD temperature controller.
5. 4 grades speed fan, adjustable for different requirements.
6. Over-temperature protection system.
7. High precision digital independent temperature limiter.
