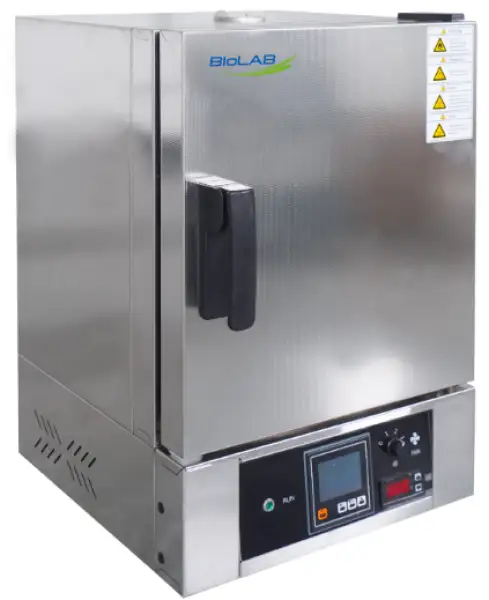

Forced Convection Drying Oven BER-8103
Hot Air Sterilizing Drying Oven
Key Features
- 1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
- 2. PID controller, with over-temperature protection function.
- 3. New anti-hot handle.
- 4. LCD temperature controller.
- 5. 4 grades speed fan, adjustable for different requirements.
- 6. Over-temperature protection system.
- 7. High precision digital independent temperature limiter.
SKU: BER-8103
Old SKU: BER1DD3
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BER-8103 |
| Capacity | 65L |
| Temperature Range | RT+10-300°C |
| Temperature Accuracy | |
| Cycle Mode | Forced convection |
| Function | |
| Temp. Resolution Ratio | 0.1°C |
| Temp. Motion | ±1°C |
| Temp. Uniformity | ±2.5% |
| Structure | |
| Inner Chamber | SUS304 |
| Outer Shell | SUS304 |
| Insulation Layer | High quality rockwool board (with CE) |
| Heater | Stainless steel heater |
| Power Rating | 1.6kW |
| Exhaust Hole | Φ35mm top (with function of test hole) |
| Controller | |
| Temp. Control Mode | Two temperature section PID intelligent |
| Temp. Setting Mode | Touch button setting |
| Temp. Display Mode | LCD Digital display |
| Timer | 0-9999min (with timing wait function) |
| Operation Function | Fixed temperature operation, fixed timing operation, auto stop. |
| Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory. |
| Sensor | PT100 |
| Safety Device | Digital Independent Temp. limiter, Over temperature sound-light alarm. |
| Specification | |
| Inner Chamber Size(W*L*H)(mm) | 400*360*450 |
| Exterior Size(W*L*H)(mm) | 550*600*790 |
| Packing Size(W*L*H)(mm) | 635*625*995 |
| Max. Shelf Number | 8 |
| Load Per rack | 15kg |
| Shelf Space | 40mm |
| Power Rating (50/60Hz) | AC220V/7.2A |
| NW/GW (kg) | 44/49 |
| Accessory | |
| Shelf | 2 |
| Shelf Frame | 4 |
| Optional accessories | Spare shelf, RS485 interface, printer, Program controller, U-disk storage; 4.3 inch color touch screen temperature controller. |
Product Features
Key design, performance, usability, and safety advantages.
1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. New anti-hot handle.
4. LCD temperature controller.
5. 4 grades speed fan, adjustable for different requirements.
6. Over-temperature protection system.
7. High precision digital independent temperature limiter.
