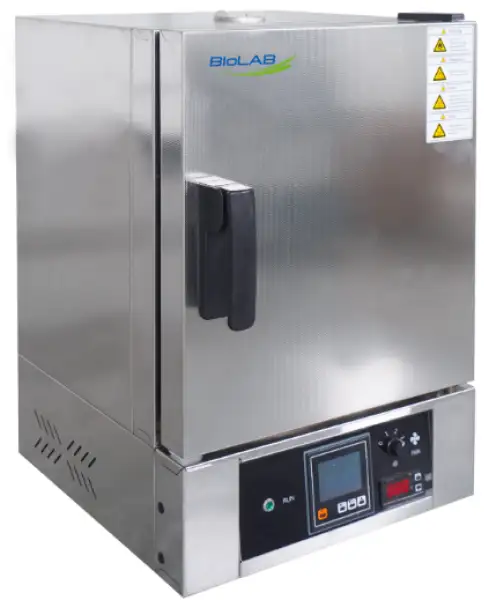

Forced Convection Drying Oven BER-8006

Forced Air Drying Oven
Key Features
  • 1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
  • 2. New anti-hot handle.
  • 3. LCD temperature controller.
  • 4. 4 grades speed fan (230 type without fan speed control function), adjustable for different requirements.
  • 5. Over-temperature protection system.
  • 6. High precision digital independent temperature limiter.
SKU: BER-8006
Old SKU: BER1DC6
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇿🇦 South Africa , 🇸🇾 Syria , 🇹🇳 Tunisia , 🇬🇾 Guyana
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-8006
Capacity230L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberSUS304
Outer ShellSUS304
Insulation LayerHigh quality rockwool board(with CE)
HeaterStainless steel heater
Power Rating3.0kW
Exhaust HoleRear exhaust
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature display on upper LCD screen, setting temperature display on the lower row
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop.
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory.
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
Inner Chamber Size(W*L*H)(mm)600*500*750
Exterior Size(W*L*H)(mm)735*885*1115
Packing Size(W*L*H)(mm)857*885*1287
Max. Shelf Number17
Load Per rack15kg
Shelf Space35mm
Power Rating (50/60Hz)AC220V/13.6A
NW/GW (kg)94/120
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, U-disk storage; 3.5 inch color touch screen temperature controller.

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
2. New anti-hot handle.
3. LCD temperature controller.
4. 4 grades speed fan (230 type without fan speed control function), adjustable for different requirements.
5. Over-temperature protection system.
6. High precision digital independent temperature limiter.
