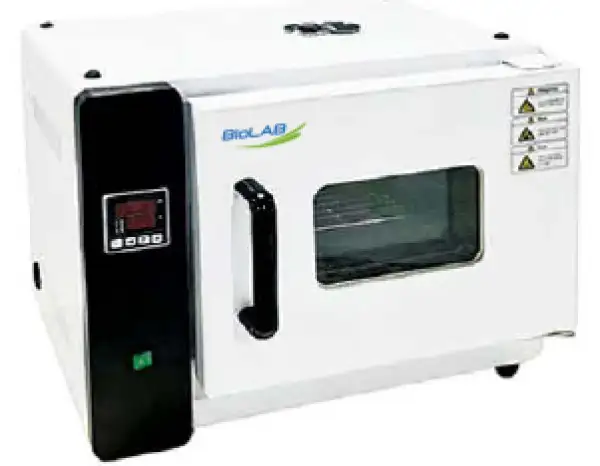

Forced Convection Drying Oven BER-7602

Horizontal Type Drying Oven And Incubator, Horizontal Type Incubator
Key Features
  • Incubator
  • 1. The thermostat adopts intelligent fuzzy PID control, which has smaller temperature overshoot and faster stability time compared with the traditional PID control.
  • 2. It has the function of reservation operation, the function of Fahrenheit and Celsius switching, and the function of three-point temperature correction.
  • 3. Can be stacked, can also be hung on the wall to improve space utilization.
  • 4. Left fan horizontal air circulation, good temperature uniformity, touch bead door lock, easy to open and close.
  • 5. Drying or culture of small samples
SKU: BER-7602
Old SKU: BER1CY2
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇳🇬 Nigeria , 🇰🇪 Kenya , 🇩🇴 Dominican Republic , 🇵🇾 Paraguay
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-7602
Capacity25L
Temperature RangeRT+5-65°C
Temperature Accuracy
Function
Cycle ModeForced convection
Temp Resolution0.1°C
Temp Fluctuation±0.5°C
Temp Uniformity±2.5%
Structure
Inner ChamberHigh quality stainless steel plate
Outer ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel heater
Power Rating0.2kW
Exhaust HoleΦ32mm top (with function of test hole)
Controller
Temp Control ModeDual-temperature fuzzy PID
Temp Setting ModeTouch button setting
Temp Display ModeLED Display
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
Sensorpt100
Safety DeviceOver temperature sound-light alarm
Specification
Inner chamber Size(W*L*H mm)-300*320*270
Exterior Size(W*L*H mm)600*500*482
Packing Size(W*L*H mm)730*630*612
Shelf Number9
Load Per Rack15kg
Shelf Space25mm
Current Rating(50/60HZ)AC220V/3.2A
NW/GW(kg)15/20
Accessory
Shelf2
Shelf Frame4
Optional AccessoriesShelves

Product Features

Key design, performance, usability, and safety advantages.

Incubator
1. The thermostat adopts intelligent fuzzy PID control, which has smaller temperature overshoot and faster stability time compared with the traditional PID control.
2. It has the function of reservation operation, the function of Fahrenheit and Celsius switching, and the function of three-point temperature correction.
3. Can be stacked, can also be hung on the wall to improve space utilization.
4. Left fan horizontal air circulation, good temperature uniformity, touch bead door lock, easy to open and close.
5. Drying or culture of small samples
