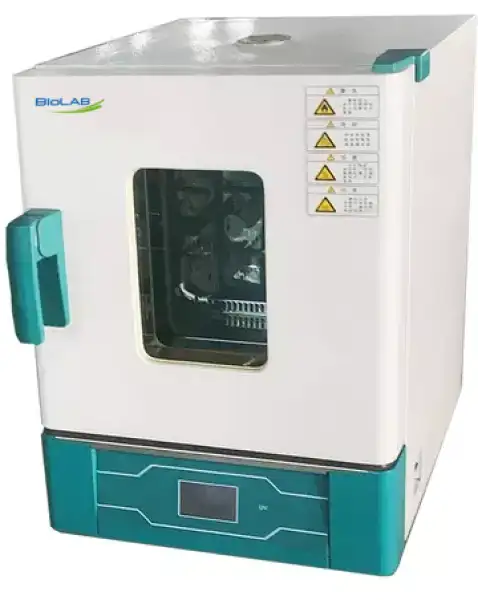

Forced Convection Drying Oven BER-601

Portable Drying And Sterilizing Oven
Key Features
  • 1. Horizontal air circularly by double s ducts, high efficiency and high uniformity.
  • 2. 3.5 inch touch screen controller, two temperature section PID intelligent. Preset 4 operating temperatures, the temperature can be edited, select the mode, click run, run automatically, stop
  • automatically , operation is convenient.
  • 3. Over temperature sound-light alarm,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory.
SKU: BER-601
Old SKU: BER1G1
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇨🇴 Colombia , 🇮🇱 Israel , 🇵🇾 Paraguay , 🇺🇾 Uruguay
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-601
Capacity30L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberMirror stainless steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board
HeaterStainless steel heater
Power Rating0.8kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting Mode3.5 inch touch screen
Temp. Display ModeTouch screen preset 4 mode settings, select a good mode to set the temperature time
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, fixed timing operation, auto stop.
Additional FunctionOver temperature sound-light alarm, Sensor deviation correction temperature overshoot ,self-tuning, power-off parameter memory
SensorPT100
Safety DeviceOver temperature alarm and cut off heating
Specification
Inner Chamber size(W*L*H)(mm)310*310*310
Exterior Size (W*L*H)(mm)450*500*690
Packing Size (W*L*H)(mm)540*575*855
Max. Shelf Number6
Load Per rack15kg
Shelf Space35mm
Power Rating (50/60HZ)AC220V/3.6A
NW/GW (kg)33/37
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 Communication Interface

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double s ducts, high efficiency and high uniformity.
2. 3.5 inch touch screen controller, two temperature section PID intelligent. Preset 4 operating temperatures, the temperature can be edited, select the mode, click run, run automatically, stop
automatically , operation is convenient.
3. Over temperature sound-light alarm,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory.
Applications Explore common laboratory, research, industrial, and process applications.

Used for industrial and mining enterprises, scientific research institute, laboratory drying in hospital health and other units, drying of dental instruments,sterilization.
