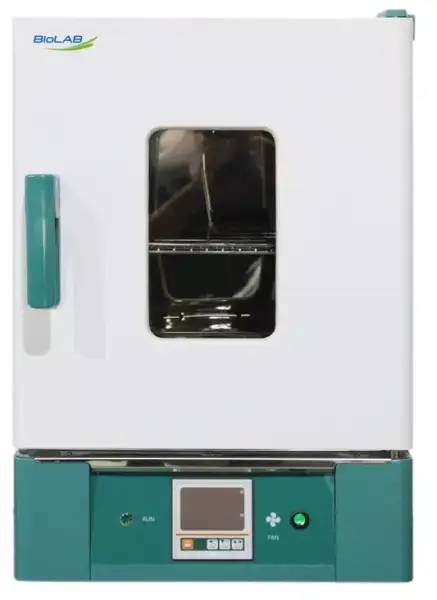

Forced Convection Drying Oven BER-516

Hot Air Sterilizing Drying Oven
Key Features
  • 1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
  • 2. PID controller, with over-temperature protection function.
  • 3. With fan switch,LED digital display,high temperature blast motor.
  • 5. New anti-hot handle.
SKU: BER-516
Old SKU: BER1F16
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇺🇬 Uganda , 🇷🇼 Rwanda , 🇵🇷 Puerto Rico , 🇹🇹 Trinidad and Tobago
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-516
Capacity85L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberMirror Stainless Steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel heater
Power Rating2.0kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeLCD Digital Display
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop.
Additional FunctionHigh precision digital independent temperature limiter.4 grades 3 speed adjustable-speed fan. Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
Inner Chamber size(W*L*H)(mm)450*420*450
Exterior Size (W*L*H)(mm)590*610*830
Packing Size (W*L*H)(mm)680*685*1000
Max. Shelf Number8
Load Per rack15kg
Shelf Space40mm
Power Rating (50/60HZ)AC220V/9.0A
NW/GW (kg)50/56
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, U-disk storage;3.5-inch color touch screen temperature controller

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
5. New anti-hot handle.
Applications Explore common laboratory, research, industrial, and process applications.

Easy to operate efficient dry heat sterilizer.
