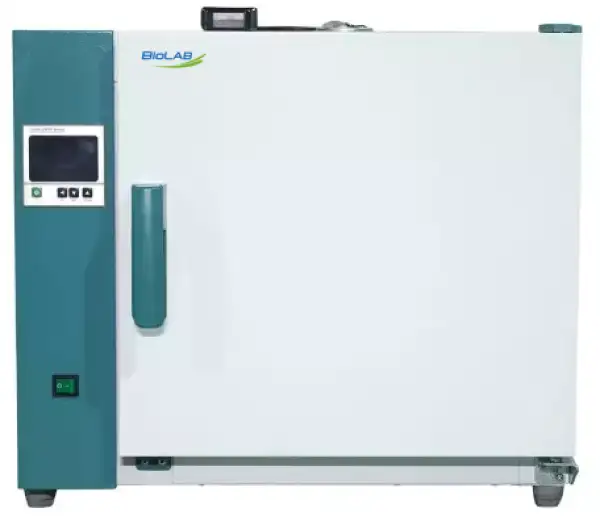

Forced Convection Drying Oven BER-404

Horizontal Drying Oven [anti-corrosive Type]
Key Features
  • 1. Horizontal air type, high space utilization and good temperature uniformity.
  • 2. SUS304 seal motor,Forced fan cooling intake structure, the maximum working temperature <507, so that the fan can run for a long time.
  • 3. SUS316 inner chamber and shelves, ensure the Anti-corrosion.
  • 4. New Anti-hot handle.
SKU: BER-404
Old SKU: BER1E4
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇺🇸 United States , 🇨🇴 Colombia , 🇹🇳 Tunisia , 🇪🇨 Ecuador
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-404
Capacity225L
Temperature RangeRT+10-250°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberSUS316 stainless steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel electric heating tube;
Power Rating3.0kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring Temperature: Display on the upper row;Setting Temperature: Display on the lower row (LED)
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, fixed timing operation, auto stop.
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceOver temperature sound-light alarm;
Specification
Inner Chamber size(W*L*H)(mm)600*500*750
Exterior Size (W*L*H)(mm)902*622*986
Packing Size (W*L*H)(mm)955*755*1150
Max. Shelf Number25
Load Per rack15kg
Shelf Space25mm
Power Rating (50/60HZ)AC220V/13.6A
NW/GW (kg)77/96
Accessory
Shelf2
Shelf Frame4
Optional accessoriesShelves, Program Controller

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air type, high space utilization and good temperature uniformity.
2. SUS304 seal motor,Forced fan cooling intake structure, the maximum working temperature <507, so that the fan can run for a long time.
3. SUS316 inner chamber and shelves, ensure the Anti-corrosion.
4. New Anti-hot handle.
