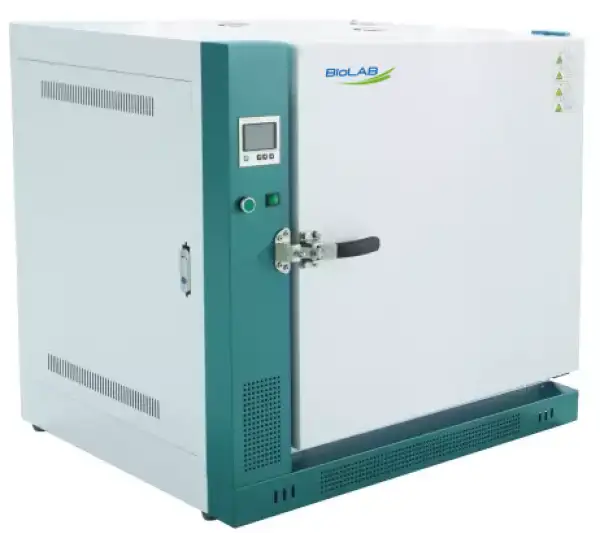

Forced Convection Drying Oven BER-1305

500°c/600°c High Temperature Forced Air Drying Oven, 600°c High Temperature Forced Air Drying Oven
Key Features
  • 1. Colour LCD display, PID controller, ensure the temperature more accurate and stable.
  • 2. SUS316 stainless steel inner chamber, four-corner semicircular arc transition, shelf can be removed freely, easy to clean.
  • 3. Ceramic fiber door seal, high temperature resistant circulating fan, long-term high temperature operation, long service life.
  • B:500°C
  • BE:600°C
SKU: BER-1305
Old SKU: BER1N5
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇳🇱 Netherlands , 🇨🇭 Switzerland , 🇷🇼 Rwanda , 🇵🇹 Portugal
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-1305
Capacity50L
Temperature RangeRT+20-600°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±0.5°C
Temp. Uniformity0.025
Structure
Inner ChamberSUS309S
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerAlumina Silicate Fibre
HeaterSUS304 Stainless steel electric heat tube
Power Rating3.6kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature display on upper LCD screen, setting temperature display on the lower row.
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop.
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorHigh Precision K type
Safety DeviceOver temperature sound-light alarm;
Specification
Inner Chamber size(W*L*H)(mm)350*350*400
Exterior Size (W*L*H)(mm)781*529*645
Packing Size (W*L*H)(mm)901*649*845
Max. Shelf Number4
Load Per rack15kg
Shelf Space45mm
Power Rating (50/60HZ)AC380V/5.5A
NW/GW (kg)44/54
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf,Program controller

Product Features

Key design, performance, usability, and safety advantages.

1. Colour LCD display, PID controller, ensure the temperature more accurate and stable.

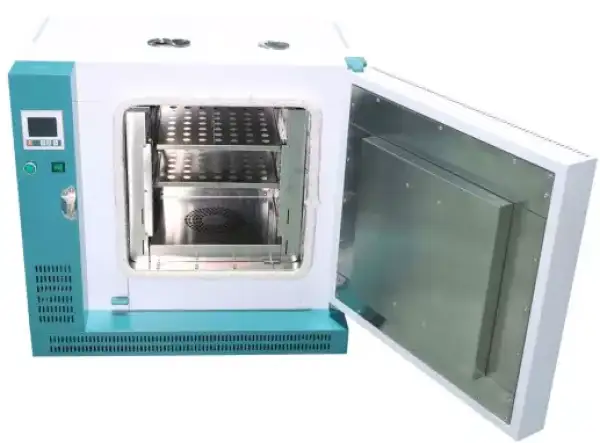

2. SUS316 stainless steel inner chamber, four-corner semicircular arc transition, shelf can be removed freely, easy to clean.
3. Ceramic fiber door seal, high temperature resistant circulating fan, long-term high temperature operation, long service life.
B:500°C
BE:600°C
