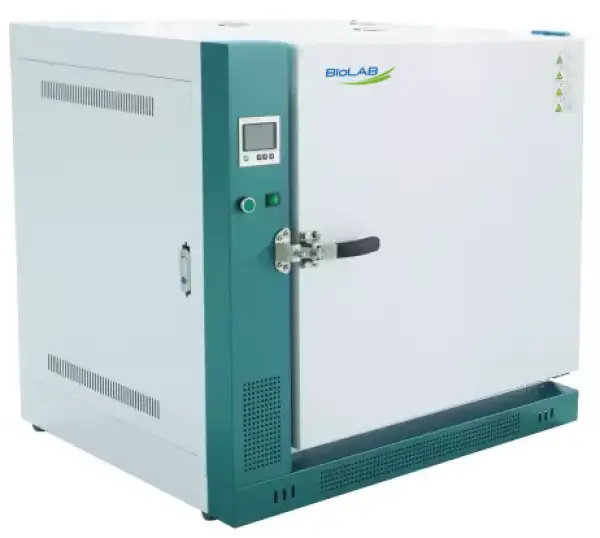

Forced Convection Drying Oven BER-1302

500°c/600°c High Temperature Forced Air Drying Oven, 500°c High Temperature Forced Air Drying Oven
Key Features
  • 1. Colour LCD display, PID controller, ensure the temperature more accurate and stable.
  • 2. SUS316 stainless steel inner chamber, four-corner semicircular arc transition, shelf can be removed freely, easy to clean.
  • 3. Ceramic fiber door seal, high temperature resistant circulating fan, long-term high temperature operation, long service life.
  • B:500°C
  • BE:600°C
SKU: BER-1302
Old SKU: BER1N2
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇱🇰 Sri Lanka , 🇵🇰 Pakistan , 🇳🇬 Nigeria , 🇹🇼 Taiwan
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-1302
Capacity91L
Temperature RangeRT+20-500°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±0.5°C
Temp. Uniformity0.025
Structure
Inner ChamberSUS316L
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerAlumina Silicate Fibre
HeaterSUS304 Stainless steel electric heat tube
Power Rating4.5kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature display on upper LCD screen, setting temperature display on the lower row.
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop.
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorHigh Precision K type
Safety DeviceOver temperature sound-light alarm;
SpecificationTwo temperature section PID intelligent
Inner Chamber size(W*L*H)(mm)450*450*450
Exterior Size (W*L*H)(mm)881*629*789
Packing Size (W*L*H)(mm)1001*749*989
Max. Shelf Number6
Load Per rack15kg
Shelf Space45mm
Power Rating (50/60HZ)AC380V/6.8A
NW/GW (kg)60/75
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf,Program controller

Product Features

Key design, performance, usability, and safety advantages.

1. Colour LCD display, PID controller, ensure the temperature more accurate and stable.
2. SUS316 stainless steel inner chamber, four-corner semicircular arc transition, shelf can be removed freely, easy to clean.
3. Ceramic fiber door seal, high temperature resistant circulating fan, long-term high temperature operation, long service life.
B:500°C
BE:600°C
