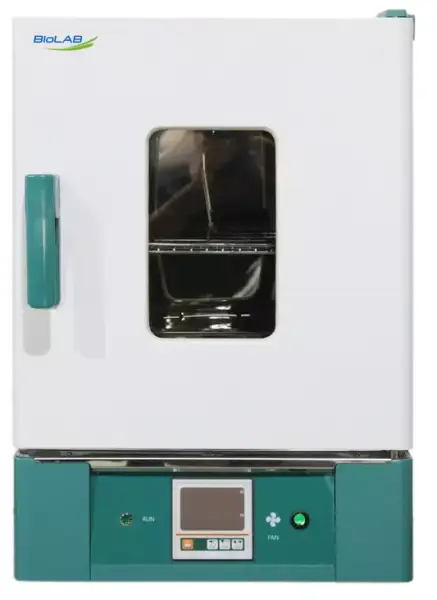

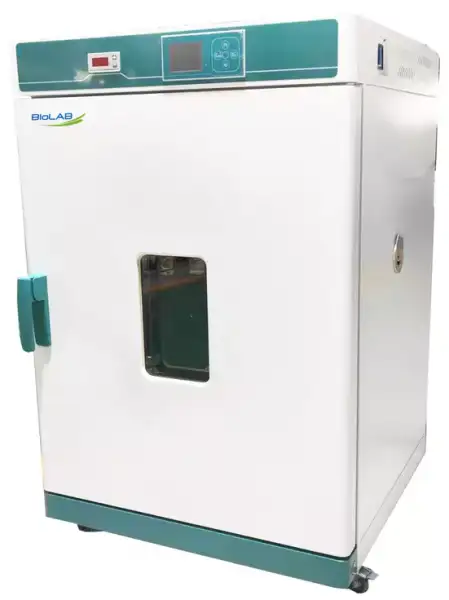

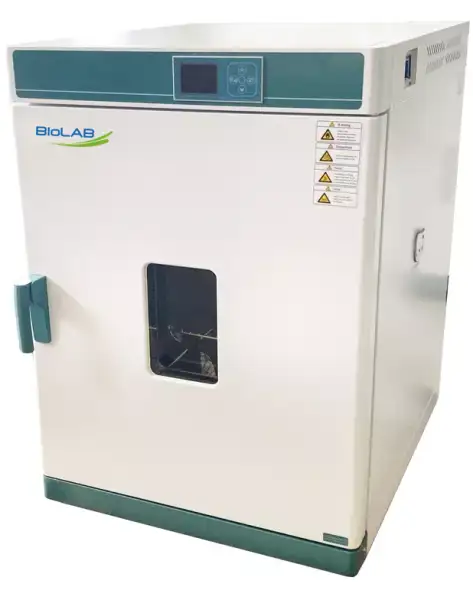

Forced Convection Drying Oven BER-119

Forced Air Drying Oven
Key Features
  • 1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
  • 2. PID controller, with over-temperature protection function.
  • 3. With fan switch,LED digital display,high temperature blast motor.
  • 4. New anti-hot handle.
SKU: BER-119
Old SKU: BER1B19
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇺🇸 United States , 🇶🇦 Qatar , 🇲🇩 Moldova , 🇮🇸 Iceland
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-119
Capacity125L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeForced convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±2.5%
Structure
Inner ChamberMirror Stainless Steel
Quter ShellCold rolling steel electrostatic spraying exterior / 304:SUS304
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel heater
Power Rating2.3kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature display on upper LCD screen, setting temperature display on the lower row
Timer0-9999min(with timing wait function)
Operation FunctionOperation Function Fixed temperature operation, timing function, auto stop.
Additional FunctionHigh precision digital independent temperature limiter.4 grades 3 speed adjustable-speed fan. Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
Inner Chamber size(W*L*H)(mm)500*450*550
Exterior Size (W*L*H)(mm)640*640*930
Packing Size (W*L*H)(mm)710*730*1100
Max. Shelf Number11
Load Per rack15kg
Shelf Space40mm
Power Rating (50/60HZ)AC220V/10.5A
NW/GW (kg)60/66
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, U-disk storage;3.5-inch color touch screen temperature controller

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4. New anti-hot handle.
Applications Explore common laboratory, research, industrial, and process applications.

Used for drying, baking, wax, heat treatment.
