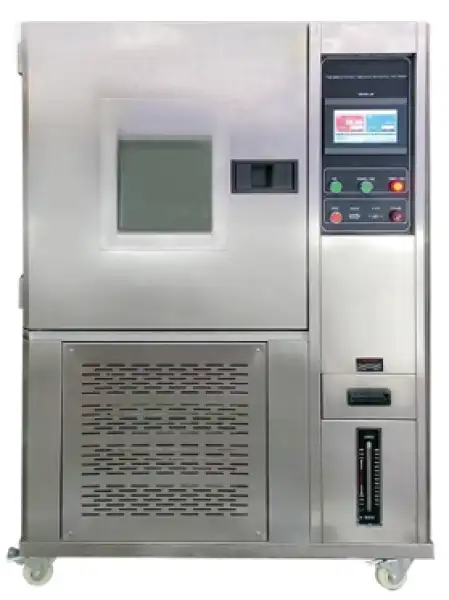

Environmental Chamber BEM-23112
High And Low Temperature Test Chamber
Key Features
- The rectangular double-layer glass observation window can be used to observe the test product during the test. The observation window has an anti-sweat electric heater device to prevent condensation, and a high-brightness PL fluorescent lamp to keep the interior of the box illuminated.
- It has a test hole for external test power cord or signal line and up and down adjustment of the storage tray.
- The double-layer insulation of the box door is tight and airtight, which can effectively isolate the internal temperature leakage.
- The special temperature rise and fall rate controllable technology realizes the continuous and arbitrary adjustment of the rise and fall rate.
- The compressor circulation system can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series adopts environmentally friendly refrigerant.
- The controller adopts imported LCD display screen, which can display the measured value, set value and time at the same time.
- The controller has multi-segment program editing, humidity and temperature can be controlled quickly (QUICK) or slope (SLOP).
- The built-in mobile sliding transport is easy to move and place and has a strong positioning screw to fix the position.
SKU: BEM-23112
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BEM-23112 |
| Capacity | 225L |
| Low Temperature Range | Low temperature: C: -20°C; D: -40°C; E: -60°C |
| High Temperature Range | High temperature: 150°C |
| Humidity Range | 20~98% RH |
| T&H Analytical Accuracy | ±0.1°C, ±1%RH |
| T&H Uniformity | ±1°C, ±2%RH |
| T&H Control Accuracy | ±0.5°C, ±1%RH |
| T&H Fluctuation | ±2°C, ±3%RH |
| Heating/Cooling Rate | Heating: 1~3°C/min (avg.); cooling: 0.7~1°C/min (avg.) |
| Inner &Outer Material | SUS304 |
| Insulation Material | High temperature resistant high-density ethyl chloroformate foam insulation material |
| Cooling System | Air cooling, single compressor: -20~-40°C |
| Air cooling, water cooling, double compressors: -60~-70°C | |
| Safety Protection | No-fuse switch, compressor overload protection switch, refrigerant high/low pressure protection switch, over-humidity and over-temperature protection switch, fuse, fault alarm system |
| Power Supply | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer); Wiring method: air switch |
| Standard Accessory | Observation window, 50mm test hole, PL box light, partition, wet and dry ball gauze, RS232, USB interface |
| Optional Accessory | Operating hole with built-in glass door |
| Internal Size(W*D*H) | 600*500*750mm |
| External Size(W*D*H) | 1150*1150*1650mm |
| Package Size(W*D*H) | 1350*1350*1950mm |
| Net Weight | 290kg |
| Gross Weight | 325kg |
Product Features
Key design, performance, usability, and safety advantages.
The rectangular double-layer glass observation window can be used to observe the test product during the test. The observation window has an anti-sweat electric heater device to prevent condensation, and a high-brightness PL fluorescent lamp to keep the interior of the box illuminated.
It has a test hole for external test power cord or signal line and up and down adjustment of the storage tray.
The double-layer insulation of the box door is tight and airtight, which can effectively isolate the internal temperature leakage.
The special temperature rise and fall rate controllable technology realizes the continuous and arbitrary adjustment of the rise and fall rate.
The compressor circulation system can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series adopts environmentally friendly refrigerant.
The controller adopts imported LCD display screen, which can display the measured value, set value and time at the same time.
The controller has multi-segment program editing, humidity and temperature can be controlled quickly (QUICK) or slope (SLOP).
The built-in mobile sliding transport is easy to move and place and has a strong positioning screw to fix the position.
