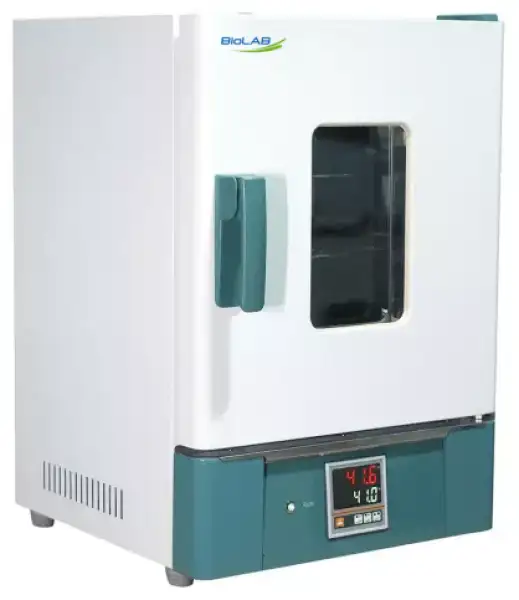

Drying Oven BONC-302

Constant-temperature Drying Oven
Key Features
  • 1. In the workroom, the hot air is convective naturally and cyclically.
  • 2. PID micro-computer intelligent temperature controller with functions of over-temperature protection.
  • 3. Standard highlight LED instrument running light.
  • 4. New anti-hot handle.
SKU: BONC-302
Old SKU: BER1C7
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇮🇩 Indonesia , 🇧🇹 Bhutan , 🇴🇲 Oman , 🇨🇳 China
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBONC-302
Capacity45L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeNatural convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±3.5%
Structure
Inner ChamberMirror Stainless Steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterNickel chromium alloy heating wire
Power Rating1.2kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display Modedisplay on LCD
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, fixed timing operation, auto stop.
Additional FunctionHigh precision digital independent temperature limiter. sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceDigital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
Inner Chamber size(W*L*H)(mm)350*350*350
Exterior Size (W*L*H)(mm)500*550*735
Packing Size (W*L*H)(mm)580*615*895
Max. Shelf Number6
Load Per rack15kg
Shelf Space40mm
Power Rating (50/60HZ)AC220V/5.5A
NW/GW (kg)37/43
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSpare shelf, RS485 interface, printer, Program controller, U-disk storage;3.5-inch color touch screen temperature controller.

Product Features

Key design, performance, usability, and safety advantages.

1. In the workroom, the hot air is convective naturally and cyclically.
2. PID micro-computer intelligent temperature controller with functions of over-temperature protection.
3. Standard highlight LED instrument running light.
4. New anti-hot handle.
Applications Explore common laboratory, research, industrial, and process applications.

Used for drying, baking, and heat treatment .
