Drying Oven BER-7904

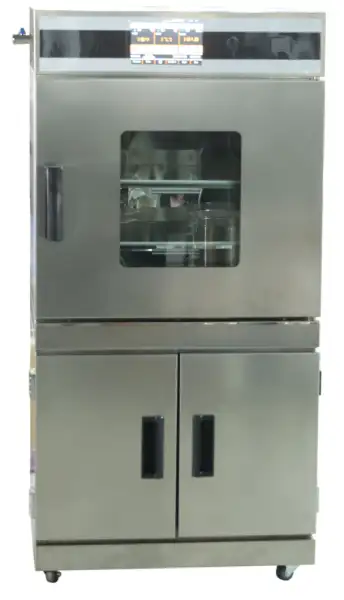

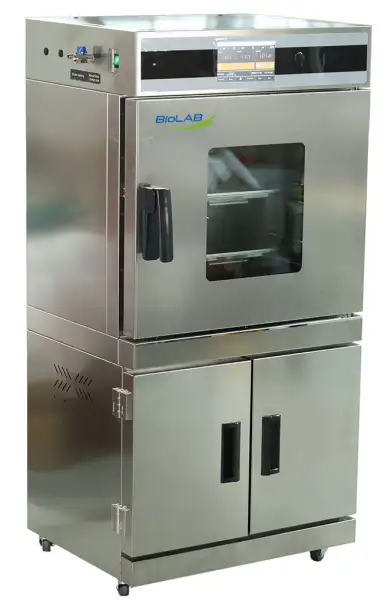

Automatic Precision Vacuum Drying Oven (pluggable Shelf Heating)

It is designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It is widely used in medicine, food, light industry, chemical industry, agricultural scientific research, environmental protection and other experimental fields.

Key Features
  • 1. SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.
  • 2. Independent pluggable shelf heating.
  • 3. Fixed value or program operation mode, true color 7.0-inch touch screen multi-section PID temperature controller, high temperature control accuracy, real-time temperature curve record, convenient for users to see the heating process. The program mode can realize temperature control and vacuum degree multi-stage programming operation to improve the experimental efficiency.
  • 4. Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust device.
SKU: BER-7904
Old SKU: BER1DB4
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇳🇬 Nigeria , 🇷🇼 Rwanda , 🇫🇮 Finland , 🇬🇾 Guyana
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-7904
Capacity52L
Temperature RangeRT+10~250°C
Temperature Accuracy
Heating ModeShelf direct heating
Function
Useful Vacuum Degree Range<133Pa
Temp. Resolution Ratio0.1°C
Temp. motion±1°C
Heating-Up Time≤ 40 minutes
Composition
Inner ChamberSUS304 mirror stainless steel
Outer ShellSUS304 deembossed stainless steel, 5083 Corrosion resistant aluminum plate
Insulation LayerAluminium silicate fiber
HeaterMica electrothermal film
Observation WindowBulletproof tempered glass
Vacuum SensorStandard pressure sensor, absolute pressure accuracy class 0.25, vacuum touch screen display
Exhaust deviceManual and electric double exhaust device
Air intake portStandard inflation port
"-BLT Vacuum Pump System (BL: without Vacuum Pump)"Double stage rotary vane vacuum pump 2L/S
Nozzle Diameter10mm
Power Rating1.2kW / H type: 1.6kW
Controller
Temperature Control Mode7.0-inch LCD color touch screen multi-stage PID program temperature control
Temperature Setting ModeTouch Screen Type
Temperature Display Mode7.0-inch LCD color touch screen
Timer0-9999 minutes / 0-999 hours can adjust
Operation FunctionFixed value operation, regular, automatic stop
Fixed Value ModeControl temperature and vacuum at the same time
Program ModeControl temperature and vacuum at the same time, 30 programmable operation
Additional FunctionReal-time temperature curve recording with U disk data storage and export function
Temperature SensorPT100
Safety DeviceOver temperature alarm, sensor fault alarm, vacuum over value alarm
Specification
Inner (W*L*H) mm415*370*340 / 635*565*796 (H type: 635*565*1296)
Exterior (W*L*H) mm580*610*930
Packing (W*L*H) mm804*705*957 / H type: 804*705*1457
Number Of Shelf2
Load Per Rack15kg
Shelf Space140mm
Current Rating (50/60Hz)AC220V/6.3A
NW/GW kg67/92 / H type: 87/112
Accessory
Shelf2
Shelf Frame4
Optional AccessoriesShelf (Independent temperature control), RS485 transfer to USB communication interface, Printer, WIFI control module

Product Features

Key design, performance, usability, and safety advantages.

1. SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.
2. Independent pluggable shelf heating.
3. Fixed value or program operation mode, true color 7.0-inch touch screen multi-section PID temperature controller, high temperature control accuracy, real-time temperature curve record, convenient for users to see the heating process. The program mode can realize temperature control and vacuum degree multi-stage programming operation to improve the experimental efficiency.
4. Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust device.
5. Users can configure the vacuum pump, standard with the vacuum pump oil return device, convenient for customers to use, avoid the vacuum pump oil return.
6. H type standard with vacuum pump, air pipeline equipped with air filter device, improve the service life of vacuum pump.
