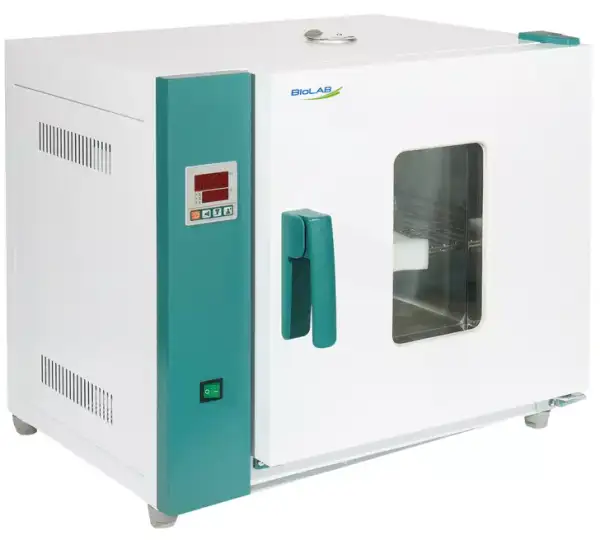

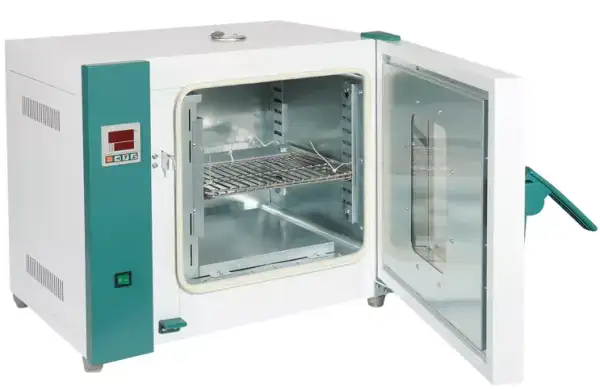

Drying Oven BER-315

Horizontal Drying Oven
Key Features
  • 1. Horizontal air type, high space utilization and good temperature uniformity.
  • 2. 101: Forced fan cooling intake structure, the maximum working temperature <50 C, the fan
  • long-term longevity operation.
  • 3. 202:Classical natural convection drying method.
  • 4. New anti-hot handle.
SKU: BER-315
Old SKU: BER1D15
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇺🇸 United States , 🇺🇬 Uganda , 🇦🇺 Australia , 🇴🇲 Oman
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-315
Capacity136L
Temperature RangeRT+10-250°C
Temperature Accuracy
Cycle ModeNatural convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±3.5%
Structure
Inner ChamberHigh quality stainless steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel electric heating tube;
Power Rating2.3kW
Exhaust HoleΦ35mm top(with function of test hole)
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeLED Digital display
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, fixed timing operation, auto stop.
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceOver temperature sound-light alarm;
Specification
Inner Chamber size(W*L*H)(mm)550*450*550
Exterior Size (W*L*H)(mm)852*572*786
Packing Size (W*L*H)(mm)945*705*950
Max. Shelf Number17
Load Per rack15kg
Shelf Space25mm
Power Rating (50/60HZ)AC220V/9.1A
NW/GW (kg)62/68
Accessory
Shelf2
Shelf Frame4
Optional accessoriesShelves

Product Features

Key design, performance, usability, and safety advantages.

1. Horizontal air type, high space utilization and good temperature uniformity.
2. 101: Forced fan cooling intake structure, the maximum working temperature <50 C, the fan
long-term longevity operation.
3. 202:Classical natural convection drying method.
4. New anti-hot handle.
Applications Explore common laboratory, research, industrial, and process applications.

High precision and large density sample drying treatment.
