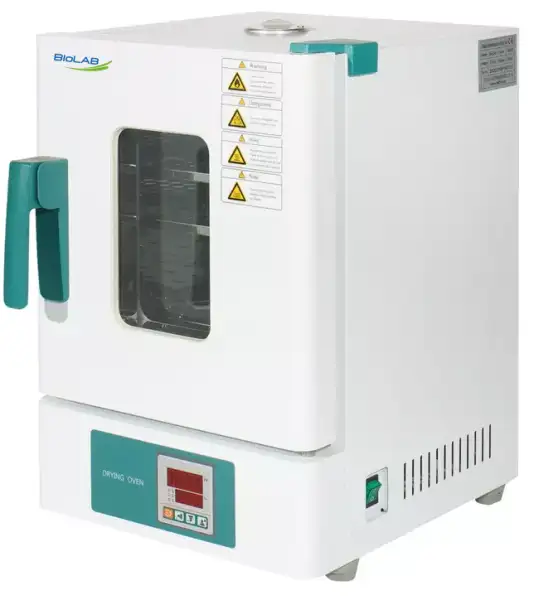

Drying Oven BER-1201

Desktop Constant-temperature Drying Oven/ Incubator
Key Features
  • 1. In the workroom, the hot air is convective naturally and cyclically.
  • 2. Digital display microcomputer intelligent PID temperature controller.
  • 3. New anti-hot handle.
SKU: BER-1201
Old SKU: BER1M1
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇹🇭 Thailand , 🇧🇬 Bulgaria , 🇦🇱 Albania , 🇵🇾 Paraguay
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-1201
Capacity18L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeNatural Convection
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±3.5%
Structure
Inner ChamberHigh strength galvanized sheet
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterNickel chromium alloy heating wire
Power Rating0.6kW
Exhaust HoleΦ35mm top (with function of test hole)
Controller
Temp. Control ModeTwo temperature section intelligent PID
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature: display on upper row;Setting temperature:display on the lower row
Timer0-9999min(with timing wait function)
Operation Functionfixed temperature operation, timing function, auto stop
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety Deviceover temperature sound-light alarm
Specification
Inner Chamber size(W*L*H)(mm)260*260*260
Exterior Size (W*L*H)(mm)380*455*568
Packing Size (W*L*H)(mm)515*480*640
Max. Shelf Number6
Load Per rack15kg
Shelf Space29mm
Power Rating (50/60HZ)AC220V/2.7A
NW/GW (kg)15/22
Accessory
Shelf2
Optional accessoriesShelf

Product Features

Key design, performance, usability, and safety advantages.

1. In the workroom, the hot air is convective naturally and cyclically.
2. Digital display microcomputer intelligent PID temperature controller.
3. New anti-hot handle.
Applications Explore common laboratory, research, industrial, and process applications.

Light natural convection drying oven / incubator.
