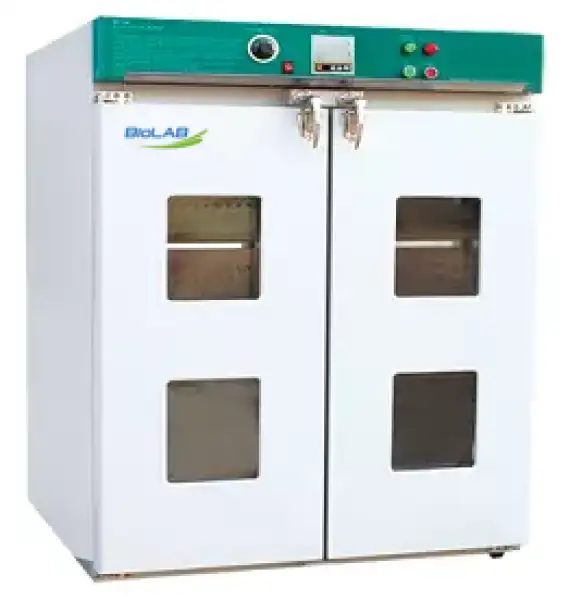

Drying Oven BER-1103

Big Forced Air Drying Oven
Key Features
  • 1. PID or program temperature control controller, with over-temperature alarm system.
  • 2. Double doors ensure that use is convenient.
  • 3. Forced air system, with Low-noise fan, centrifugal cycle method, high temperature
  • uniformity.
SKU: BER-1103
Old SKU: BER1L3
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇶🇦 Qatar , 🇩🇪 Germany , 🇱🇧 Lebanon , 🇦🇹 Austria
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-1103
Capacity1300L
Temperature RangeRT+10-300°C
Temperature Accuracy
Cycle ModeFan - forced circulation
Function
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Temp. Uniformity±3%
Structure
Inner ChamberIron inner chamber
Quter ShellGalvanized sheet electrostatic spraying exterior
Insulation LayerHigh quality rock wool board(with CE)
HeaterStainless steel heating tube
Power Rating9kW
Exhaust HoleOn top or side
Controller
Temp. Control ModePID intelligent control or Multi - segment programmable control ( optional )
Temp. Setting ModeTouch button setting
Temp. Display ModeLCD Digital Display
Timer0-9999min (with timing wait function) )
Operation FunctionFixed temperature operation, timing function, auto stop.
Additional FunctionTemperature deviation correction, menu locked, power-off memory
SensorPT100
Safety DeviceOne key to start overheat power off
Specification
Inner Chamber size(W*L*H)(mm)1000*1000*1300
Exterior Size (W*L*H)(mm)1230*1200*1670
Packing Size (W*L*H)(mm)1350*1300*1890
Max. Shelf Number11
Load Per rack30kg
Shelf Space100mm
Power Rating (50/60HZ)380V
NW/GW (kg)350
Accessory
Shelf2
Shelf FrameNo
Optional accessoriesSpare shelf, Program controller, RS485 interface, PrinterProducts of different specifications can be customized according to customer requirements.

Product Features

Key design, performance, usability, and safety advantages.

1. PID or program temperature control controller, with over-temperature alarm system.
2. Double doors ensure that use is convenient.
3. Forced air system, with Low-noise fan, centrifugal cycle method, high temperature
uniformity.
Applications Explore common laboratory, research, industrial, and process applications.

Large capacity industrial high precision drying oven to meet the requirements of military industry.
