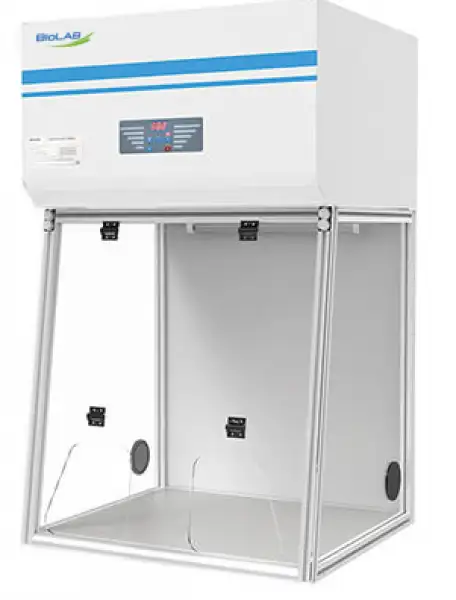

Compounding Hood BCHL-406
Compounding Hood
Key Features
- There are two types:

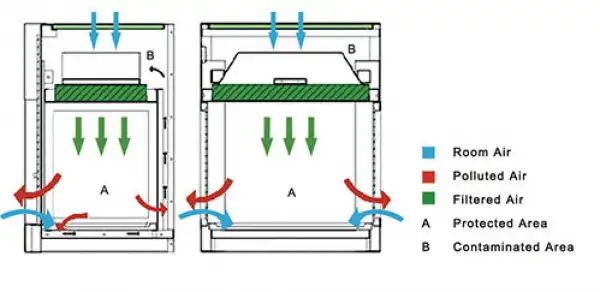

- - Positive pressure in work area only protects sample

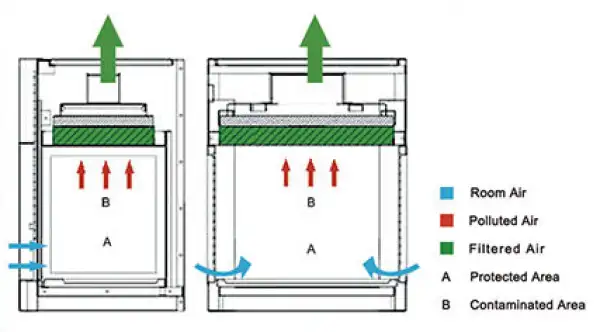

- - Negative pressure in work area protects operator and environment.
SKU: BCHL-406
Old SKU: BEM1BL8
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇵🇰 Pakistan , 🇲🇾 Malaysia , 🇵🇾 Paraguay , 🇦🇹 Austria
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BCHL-406 |
| External Size (W*D*H)mm | 1200*620*1150mm |
| Internal Size (W*D*H) | 1140*550*700mm |
| Display | LED Display |
| Airflow Velocity | 0.3~0.8m/s |
| Material Main body | Cold-steerl owithl alnti-ebacdter ia powder coating |
| Material Work table | Solid physicochemical steel plate |
| Pre-Filter | Polyester fiber |
| Filter | Active Carbon Filter, HEPA Filter |
| Noise | ≤60dB |
| Front Window | Manual, acrylic material |
| Max Opening | 660mm |
| LED Lamp | 12W*1 |
| UV Lamp | 15W*1 (optional)Emission of 253.7 nanometers |
| Consumption | 400W |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz; |
| Standard Accessory | Active carbon filter,HEPA filter4 meters PVC exhaust duct, Diameter: 250mm. |
| Optional Accessory | Base Stand, UV Lamp*2 |
| Gross Weight | 190kg |
| Package Size (W*D*H)mm | 1340*740*1360 |
Product Features
Key design, performance, usability, and safety advantages.
There are two types:
- Positive pressure in work area only protects sample
- Negative pressure in work area protects operator and environment.
