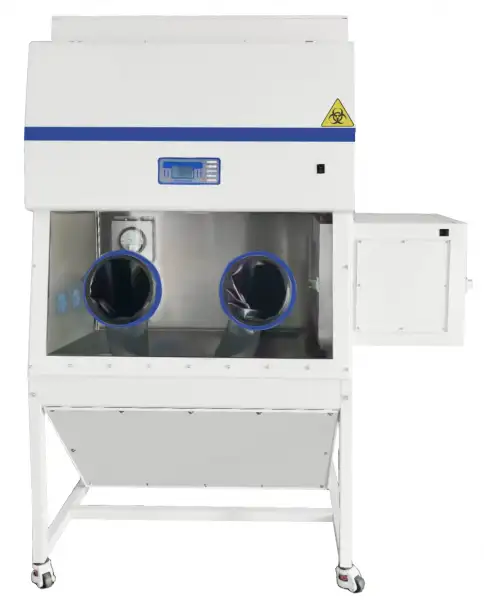

Class III Biological Safety Cabinet BJU-101
- Advantage:
- Memory function in case of power-failure.
- UV sterilization with UV lamp timing function.
- Work area surrounded by negative pressure, prevent leakage,improve biosafety.
- Audio and Visual alarm, including abnormal pressure and filter replacement.
- With double exhaust ULPA filters,≥99.9995% efficiency at 0.12 μm.
- Ergonomic 10° tilt Angle improves the operation comfort.
- Airflow Pattern:
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BJU-101 |
| Internal Dimensions (W*D*H) | 910*680*680 mm |
| External Dimensions (W*D*H) | 1540*880*2000 mm |
| Pass Box External Size (WxDxH) | 575x445x469 mm |
| Pass Box Internal Size (WxDxH) | 430x330x356 mm |
| Control System Display | LCD display |
| Control System Alarm | Audio and Visual alarm, including abnormal pressure and filter replacement |
| --Pre-Filter | Polyester fiber, washable (Negative pressure ≥120 Pa) |
| --ULPA Filter | Air supply filterFirst exhaust filterSecond exhaust filter |
| --Cleanliness Grade | Class 100 (ISO14644.1 Class 5) |
| Cabinet Construction | |
| --Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
| --Work Surface | 304 stainless steel |
| --Front Window | 8mm toughened glass, anti-ultraviolet radiation |
| --Gloves | One pair of 800mm butyl rubber gloves |
| Electrical System | |
| --UV Lamp | 18Wx2, 8Wx1 |
| --LED Lamp | 12Wx2 |
| --Max. Consumption | 1200W |
| --Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Illumination | ≥1000 Lux |
| Sound Emission | ≤70 dB(A) |
| Standard Accessory | 1.Glovesx1 pair; 2.LED Lampx2; 3.UV Lampx3; 4.Pressure Meter; 5.Drain Valve; 6.ULPA Filters; 7.Footmaster Caster; 8.Waterproof Socketx2 |
| Gross Weight | 350 kg |
| Shipping Size (WxDxH) | 1635x1065x2160 mm |
| Shipping Volume | 3.8 m³ |
Product Features
Key design, performance, usability, and safety advantages.
Advantage:
Memory function in case of power-failure.
UV sterilization with UV lamp timing function.
Work area surrounded by negative pressure, prevent leakage,improve biosafety.
Audio and Visual alarm, including abnormal pressure and filter replacement.
With double exhaust ULPA filters,≥99.9995% efficiency at 0.12 μm.
Ergonomic 10° tilt Angle improves the operation comfort.

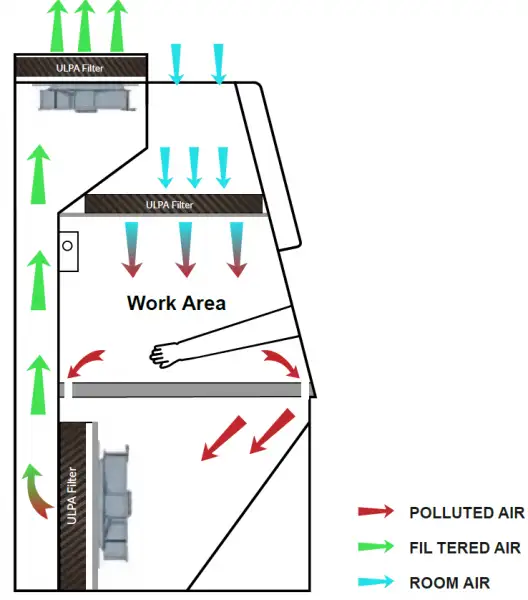

Airflow Pattern:
LCD Display:
Large display is easy to monitor the pressure parameters for work zone and three filters.

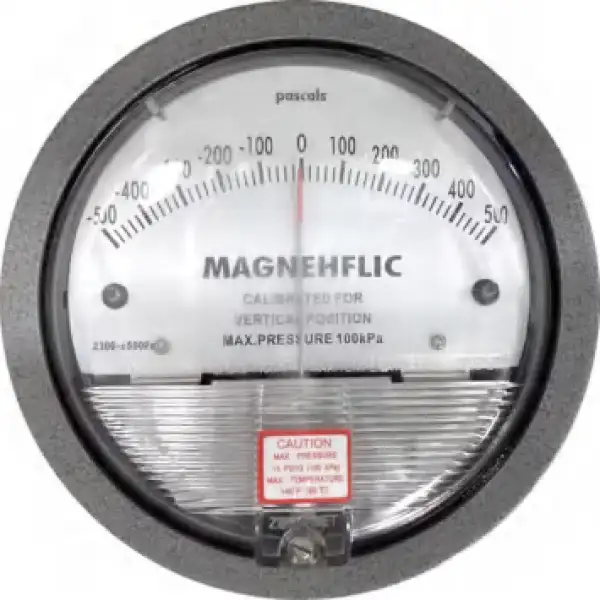

Pressure Meter:
Display the pressure of the work zone.

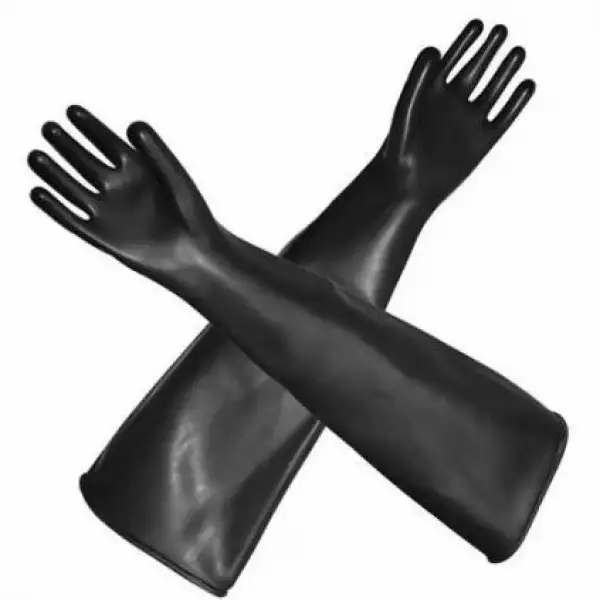

Butyl Rubber Gloves:
Strong wear resistance and corrosion resistance

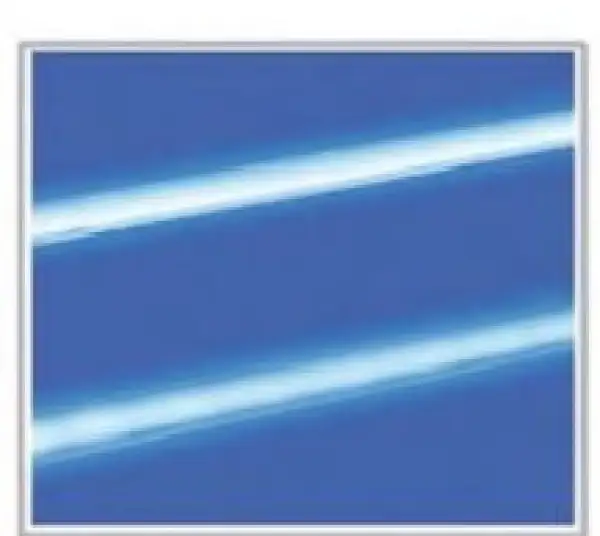

UV Lamp:
Emission of 253.7 nanometers for most efficient decontamination

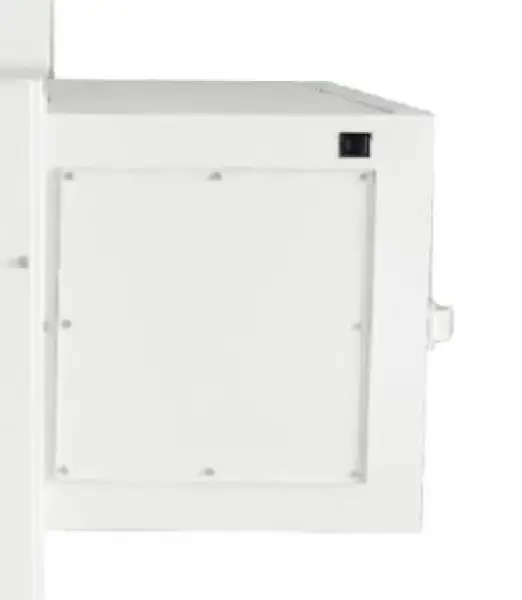

Pass Box:
Double doors with interlock function and UV lamp.

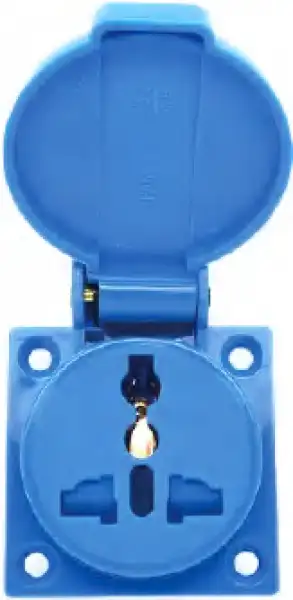

Waterproof Socket (IP54)
