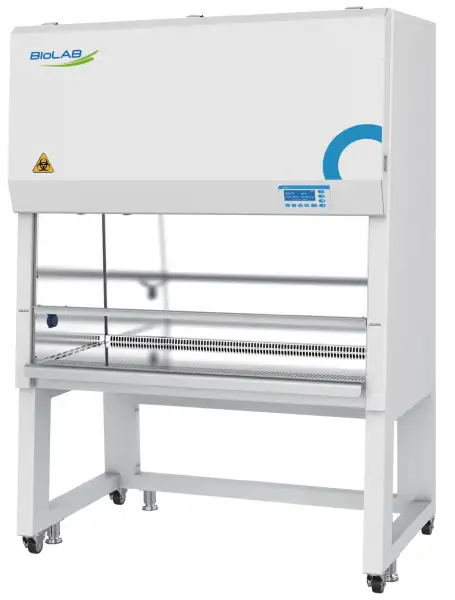

Class II Biological Safety Cabinet BGI-5503
- Microprocessor Controller
- • Large LCD display, the right place and angled down for easy reach & viewing.
- • Real-time monitoring, display all safety information on one screen.
- • Real-time monitoring of hepa filter status. Display sound and light alarm about failure, pre-failure, damaged.
- EC Fan
- • High efficiency and energy saving with 30%-60% energy savings compared to AC motor.
- • The automatic resistance compensation function can provide safe air velocity even when the filter resistance increases by 300%.
- HEPA Filter
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BGI-5503 |
| Internal Size (W*D*H) | 1520x580x655 |
| External Size (W*D*H) | 1640*810*2100mm |
| Downflow Velocity | 0.33m/s |
| Inflow Velocity | 0.53m/s |
| Working Access Opening Height | 200mm |
| Opening MAX. | 500mm |
| HEPA Filter Typical Efficiency | 99.995% @ 0.3μm |
| Noise | <65dB |
| Fluorescent Lamp Intensity | >900Lux |
| UV Lamp | 40W |
| Voltage | 220V/50Hz |
| Power Consumption | 1500VA |
| Net Weight | 305kg |
| Shipping Weight | 395kg |
| Shipping Dimensions (WxDxH) mm | 1810x935x1810 |
Product Features
Key design, performance, usability, and safety advantages.
Microprocessor Controller
• Large LCD display, the right place and angled down for easy reach & viewing.
• Real-time monitoring, display all safety information on one screen.
• Real-time monitoring of hepa filter status. Display sound and light alarm about failure, pre-failure, damaged.
EC Fan
• High efficiency and energy saving with 30%-60% energy savings compared to AC motor.
• The automatic resistance compensation function can provide safe air velocity even when the filter resistance increases by 300%.

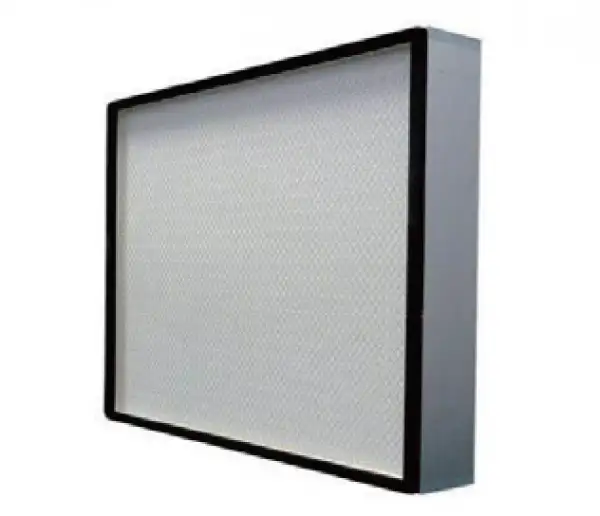

HEPA Filter
• Filtration efficency>99.99%@0.3μm.
• Cleanliness ISO class 5.
• UPLA filter is optional.
Internal Working Area
• Three sides of the inner wall shape a large arc design, easy to clean.
• A special negative pressure design prevents contaminants from escaping up the side wall into the operator's environment.
• Paper collectors prevent the high maintenance costs associated with paper waste inhalation.
• Easy to remove working surface and support, easy to clean drain tray.
Ergonomic Design
• 5°backward-slanted safety grade glass provides more comfortable viewing.
• Raised arm rest help prevent grille blockig.
• Sash is designed for easy operation with single hand.
• Backlight lighting design reduces operator visual fatigue.
Applications Explore common laboratory, research, industrial, and process applications.
Three protection:operator, sample and environment.
Airflow system:70% air recirculation, 30% air exhaust.
A2 cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
