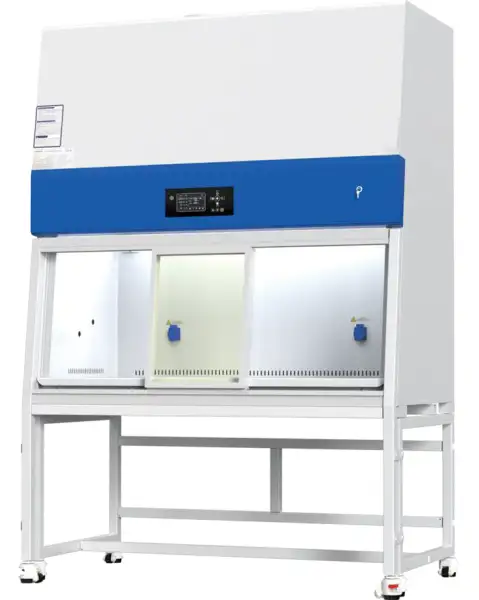

Class II A2 Biological Safety Cabinet BEM-23201
Radiation Protection Biological Safety Cabinet
Key Features
SKU: BEM-23201
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇱🇰 Sri Lanka , 🇹🇿 Tanzania , 🇦🇺 Australia , 🇬🇲 Gambia
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BEM-23201 |
| Internal Size (W*D*H) | 1350*600*660mm |
| External Size (W*D*H) | 1500*840*2200mm |
| Tested Opening | Safety height 200 mm (8") |
| Max Opening | 440 mm |
| Inflow Velocity | 0.53±0.025 m/s |
| Downflow Velocity | 0.33±0.025 m/s |
| ULPA Filter | Two filters, 99.9995% efficiency at 0.12 μm, filter life indicator |
| Front Window | Motorized, two-layer laminated toughened glass ≥6 mm, anti-UV |
| Noise | ≤65 dB |
| UV Lamp | 40 W x 1 |
| UV Features | UV timer, UV life indicator, emission of 235.7 nm for decontamination |
| LED Lamp | 16 W x 2 |
| Illumination | ≥1000 Lux |
| Consumption | 1600 W |
| Waterproof Socket | 2 sockets, total load 500 W |
| Display | LCD display showing filter pressure, UV lamp working time, airflow velocity, filter life, humidity, temperature and system working time |
| Control System | Microprocessor |
| Airflow System | 70% air recirculation, 30% exhaust |
| Visual and Audio Alarm | Abnormal airflow velocity, filter replacement, unsafe front window height, high filter pressure and abnormal power failure |
| Work Zone Material | 304 stainless steel |
| Main Body Material | Cold-rolled steel with antibacterial powder coating |
| Work Surface Height | 750 mm (customizable) |
| Caster | Footmaster caster |
| Power Supply | AC 220 V, 50/60 Hz; 110 V, 60 Hz |
| Standard Accessories | LED lamps (2), UV lamp (1), base stand, remote control, foot switch, drain valve, waterproof sockets (2) |
| Optional Accessories | Water and gas tap, armrest |
| Gross Weight | 465 kg; 75 kg |
| Package Size (WxDxH) | 1630x1060x1840 mm; 1580x370x910 mm |
