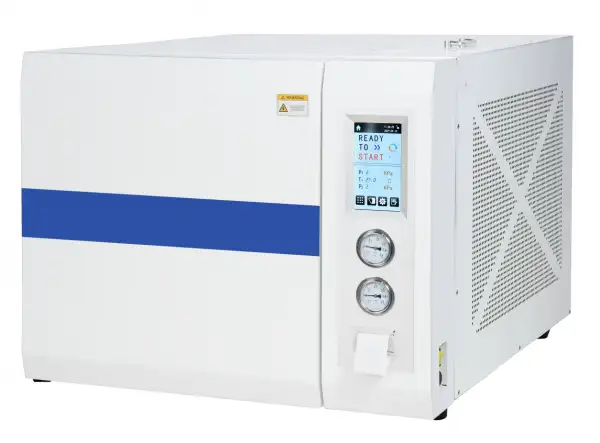

Class B Autoclave BJU-10302
Class B Benchtop Autoclave
Key Features
- Control System

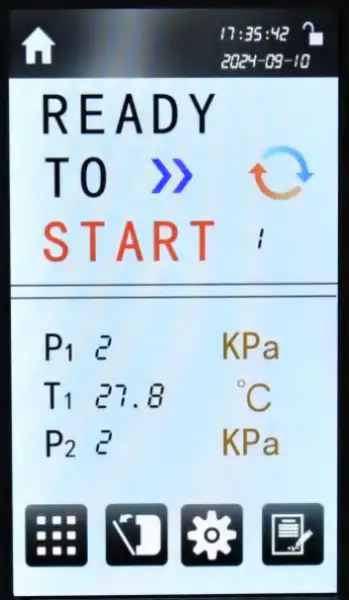

- 1. Display:The LCD touch screen can display temperature, pressure, time, operating status, fault alarm, equipment operation curve and other information in real time, making the sterilization information more intuitive and clear, and convenient for users to observe the operating status of the equipment.
- 2. Process control: The whole process of preheating, replacement, heating, sterilization, exhaust and vacuum drying is automatically operated; it uses steam as the medium, adopts an efficient vacuum pumping system, and repeatedly pumps vacuum to achieve the effect of sterilization and drying.
- 3. Multi-point Temperature Control Technology: Non-sealed liquid programs use mobile temperature sensors to measure temperature, which can detect the internal temperature of the liquid in real time, making the internal temperature of the liquid more intuitive and clear.
- 4. Insulation Function: The insulation function can be set as needed to achieve liquid culture medium sterilization, culture medium dissolution-insulation function.
- 5. Safety Function: With over-temperature automatic protection device, anti-dry burning protection device, over-pressure automatic release device, over-current protection device, electronic circuit safety device.
- 6. Self-calibration Function: It has a complete background self-calibration system to realize the calibration of system parameters such as pressure and temperature. Without disassembling the instrument, the authorized tool can be used for on-site adjustment.
- 7. Independently Installed Pressure Sensors: An independent pressure transmitter is installed in each of the inner chamber and evaporator to ensure that the equipment pressure is within the safe control range.
SKU: BJU-10302
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇲🇲 Myanmar , 🇹🇭 Thailand , 🇬🇧 United Kingdom , 🇹🇳 Tunisia
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BJU-10302 |
| Capacity | 80L |
| Sterilization Temperature | 121°C / 134°C |
| Working Pressure | |
| Features | |
| Chamber Size | Ø391 x 671 mm |
| Designed Pressure | -0.1/0.3 MPa |
| Sterilization Temperature | 150°C |
| Water Tank Capacity | 14L |
| Chamber Material | SUS304 |
| Noise | ≤65 dB |
| Consumption | 6.2 kW |
| Power Supply | AC 220V/110V, 50/60Hz |
| External Size (WxDxH) | 1140 x 805 x 675 mm |
| Shipping Size (WxDxH) | 1330 x 960 x 940 mm |
| N.W./G.W. | 185/230 kg |
Product Features
Key design, performance, usability, and safety advantages.
Control System
1. Display:The LCD touch screen can display temperature, pressure, time, operating status, fault alarm, equipment operation curve and other information in real time, making the sterilization information more intuitive and clear, and convenient for users to observe the operating status of the equipment.
2. Process control: The whole process of preheating, replacement, heating, sterilization, exhaust and vacuum drying is automatically operated; it uses steam as the medium, adopts an efficient vacuum pumping system, and repeatedly pumps vacuum to achieve the effect of sterilization and drying.
3. Multi-point Temperature Control Technology: Non-sealed liquid programs use mobile temperature sensors to measure temperature, which can detect the internal temperature of the liquid in real time, making the internal temperature of the liquid more intuitive and clear.
4. Insulation Function: The insulation function can be set as needed to achieve liquid culture medium sterilization, culture medium dissolution-insulation function.
5. Safety Function: With over-temperature automatic protection device, anti-dry burning protection device, over-pressure automatic release device, over-current protection device, electronic circuit safety device.
6. Self-calibration Function: It has a complete background self-calibration system to realize the calibration of system parameters such as pressure and temperature. Without disassembling the instrument, the authorized tool can be used for on-site adjustment.
7. Independently Installed Pressure Sensors: An independent pressure transmitter is installed in each of the inner chamber and evaporator to ensure that the equipment pressure is within the safe control range.
8. Water Injection and Drainage Method: Automatic water injection, automatic drainage.
9. Pressure Gauge: Range: -0.1~0.5MPa, Accuracy level: 1.6.

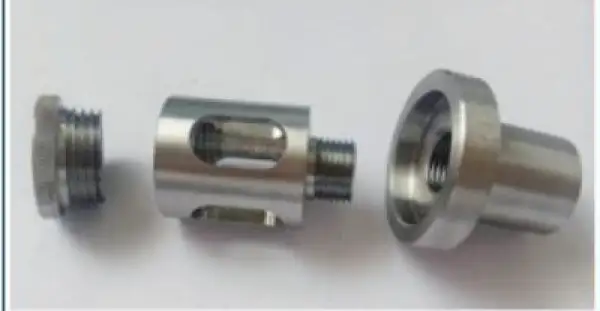

10. Filter: Manually removable filter, easy to clean, more user-friendly.
Sterilization Program
Encapsulation Program, Rubber Program, Dressing Program, Liquid Program, Liquid customization, Solid customization, as well as B&D testing, Vacuum testing Program, Medium Sterilization&Dissolution.
Applications Explore common laboratory, research, industrial, and process applications.
The non-liquid program is suitable for the sterilization of surgical instruments, solid bare instruments, packaged instruments, rubber loads, etc. The liquid program is suitable for the sterilization of liquids such as water and culture media.
