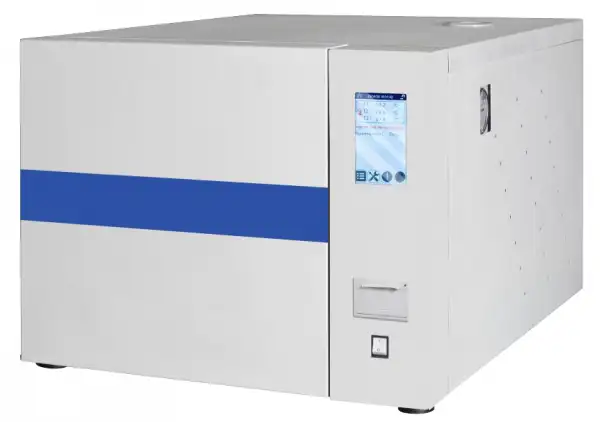

Class B Autoclave BJU-10101
Class B Benchtop Autoclave
Key Features
- Built-in vacuum pump, with three adjustable pulsating vacuum cycles, achieving a vacuum degree up to -0.090MPa.
- Vacuum drying system, with fabric drying rate less than 1% and instrument drying rate less than 0.1%.
- Multi Safety Features
- Overheat protection : Automatically cutting off.Audible and visual alarm will be there.
- Interlock Safety : To prevent a cycle from starting if the door is not locked or stop door opening when the chamber is pressurized.
- Anti-burning protection:Auto shut-off with audible and visual alerts for low water levels in autoclave.
- Steam pressure safety valve : Automatically starts when the chamber pressure exceeds the limit.
- Automatic operation, touch screen interface, built-in vacuum pump, steam generator, post-vacuum drying, positive pulsing, air filter, standard printer for real-time record keeping.
SKU: BJU-10101
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BJU-10101 |
| Capacity | 45L |
| Sterilization Temperature | 105-136°C |
| Working Pressure | 0.23 MPa |
| Features | |
| External Size (WxDxH) | 870 x 600 x 520 mm |
| Chamber Size (ØxH) | 316 x 590 mm |
| Chamber Material | SUS304 |
| Designed Temperature | 150°C |
| Max. Working Temperature | 136°C |
| Temperature Accuracy | 0.1°C |
| Temperature Uniformity | ±0.5°C |
| Designed Pressure | 0.3 MPa |
| Pressure Resolution | 0.1 kPa |
| Ultimate Vacuum | -0.096 MPa |
| Temperature Controller | PID control by microprocessor |
| Display | LCD touch screen |
| Drying Function | YES |
| Drying Time | 15 min |
| Sterilization Program | 1. Medical Instrument program 2. Luminal Instruments 3. Dressings program 4. Rubber program 5. Liquid program 6. BD Test program 7. Vacuum Test program 8. 4 pcs DIY program |
| Water Supply | Built-in water tank |
| Consumption | 3.6 kW |
| Power Supply | AC 220/110 V, 50/60 Hz |
| Standard Sterilization Shelf | 1 pcs SS shelf |
| Standard Accessory | Printer |
| Net Weight | 65 kg |
| Gross Weight | 120 kg |
| Shipping Size (WxDxH) | 1150 x 700 x 700 mm |
Product Features
Key design, performance, usability, and safety advantages.
Built-in vacuum pump, with three adjustable pulsating vacuum cycles, achieving a vacuum degree up to -0.090MPa.
Vacuum drying system, with fabric drying rate less than 1% and instrument drying rate less than 0.1%.
Multi Safety Features
Overheat protection : Automatically cutting off.Audible and visual alarm will be there.
Interlock Safety : To prevent a cycle from starting if the door is not locked or stop door opening when the chamber is pressurized.
Anti-burning protection:Auto shut-off with audible and visual alerts for low water levels in autoclave.
Steam pressure safety valve : Automatically starts when the chamber pressure exceeds the limit.
Automatic operation, touch screen interface, built-in vacuum pump, steam generator, post-vacuum drying, positive pulsing, air filter, standard printer for real-time record keeping.
Automatic door switch for convenient and safe operation.
