Class B Autoclave BGA-1401

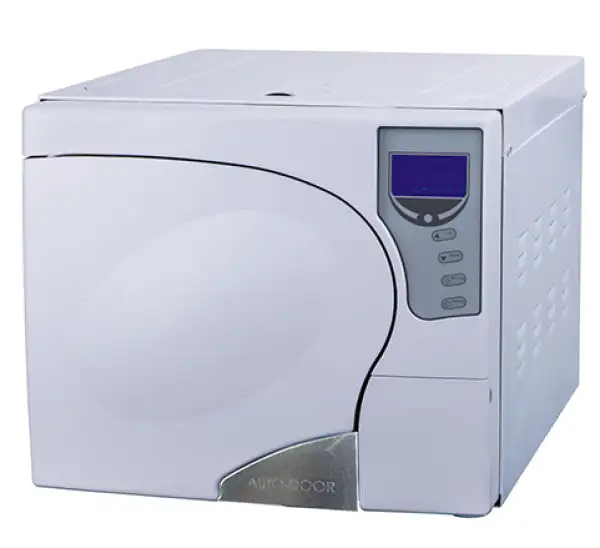

Class B Autoclave
Key Features
- Based on the new class B of international prEN13060, have 3 pulsating vacuum, Vacuum up to-0.9Bar(-0.09Mpa).Suitable to sterilizing wrap,unwrap,solid,porous,hollow device.
- Use imported&advanced 16-bit microprocessor,easy to operate.Most suitable for the Dept of Stomatology,Ophthalmology, Surgery and Lab.
- With B& D test and vacuum test procedures. To test the penetrability.
- The jet type of steam generator ensures the efficient sterilization.
- With an alarm system for the waste water tank, avoid the waste water from entering into the sterilizing circulation,make the sterilizing complete.
- Precise digital display and advanced self-test system ensure you get the working data freely.
- Double lock door system for safety during operating.
- Optional inbuilt mini-printer or USB connector to record the process of sterilizing.
SKU: BGA-1401
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BGA-1401 |
| Capacity | 23L |
| Sterilization Temperature | 134°C/121°C |
| Working Pressure | |
| Features | |
| Power | 2000W |
| Voltage | AC220V/110V±10% |
| Frequency | 50/60Hz±1Hz |
| Tank Capacity | 23Litres |
| Appearance size | 480X630X420mm |
| Inside Dimension | Ø249x450mm |
| Outside Dimension | 750x595x525mm |
| Sterilization level | European Class B standard |
| Sterilizing temp. | 134°C/121°C |
| Special sterilization | Kill active HV,HBV,BSE and spore |
| Dry procedure | Strong vacuum drying,the residual humidity<0.2% |
| Display | Widescreen LCD |
| Test | Bowie&Dick Steam penetration test, vacuum test , Helix test |
| Safety | Safety valve, Doble Pressure lock Automatic check. |
| Sterilizing record | Optional USB and printer (internal or external) to record the sterilization process |
| Water supply system | 3L distiller water tank,3L waste water tank |
| Clean procedure | Automatic clean inside pipe and steam generator |
| Instrument containers | 5 levels with 3 Round trays |
| G"W | 53kg |
Product Features
Key design, performance, usability, and safety advantages.
Based on the new class B of international prEN13060, have 3 pulsating vacuum, Vacuum up to-0.9Bar(-0.09Mpa).Suitable to sterilizing wrap,unwrap,solid,porous,hollow device.
Use imported&advanced 16-bit microprocessor,easy to operate.Most suitable for the Dept of Stomatology,Ophthalmology, Surgery and Lab.
With B& D test and vacuum test procedures. To test the penetrability.
The jet type of steam generator ensures the efficient sterilization.
With an alarm system for the waste water tank, avoid the waste water from entering into the sterilizing circulation,make the sterilizing complete.
Precise digital display and advanced self-test system ensure you get the working data freely.
Double lock door system for safety during operating.
Optional inbuilt mini-printer or USB connector to record the process of sterilizing.
