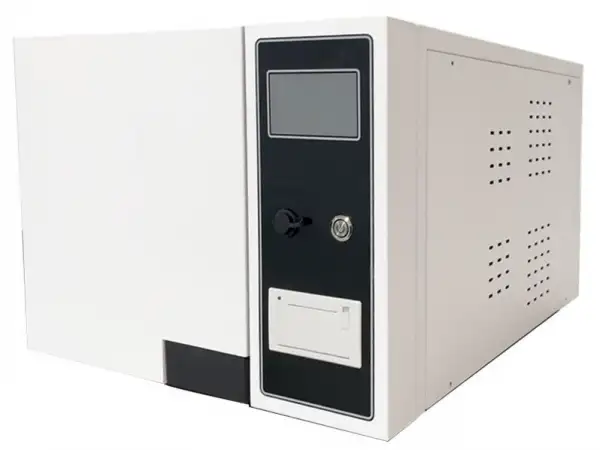

Benchtop Autoclave BKM-501
Pre-vacuum Small Steam Sterilizer
Key Features
- This series of compact steam sterilizers (hereinafter referred to as sterilizers) are precision devices designed for physicians or their assistants to perform simple, rapid, and effective sterilization tasks under physician supervision.
- Featuring a microprocessor-based intelligent control system, the sterilizer offers user-friendly operation with real-time parameter and status display.
- It automatically diagnoses malfunctions and provides over-temperature / over-pressure protection to ensure reliable sterilization and disinfection.
- The sterilizer consists of a sterilization chamber, door assembly, heat insulation on layer, piping system, safety valve, control system, water storage tank, wastewater tank, and steam generator.
- The triple-pulse vacuum technology minimizes residual air in the chamber, enhancing sterilization efficacy.The high-definition LCD display clearly shows all sterilization data, enabling better control of the sterilization process.
SKU: BKM-501
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BKM-501 |
| Capacity | 23L |
| Sterilization Temperature | 121°C / 20 minutes; 134°C / 5 minutes |
| Working Pressure | 0.22 MPa |
| Features | |
| Heating method | Electrical heating |
| Vapour system | Built-in electric steam generator |
| Product form | Table model |
| Power | 2.9 KVA |
| Source | AC220V, 50Hz |
| Outline dimension | 700 x 530 x 425 mm |
| Inner liner size | Φ250 mm x 450 mm |
| Energy consumption | Approximately 1.5 kWh per batch |
| Tank capacity | 1.5 L |
| Water supply method | It comes with a self-priming pump and can connect to a pipeline for automatic water supply. |
| Water consumption | 0.6 L |
| Displacement | 0.6 L (all except a small amount remaining on sterilized articles) |
| Materials used for the sterilization chamber | The sterilization chamber is made of 304 corrosion-resistant stainless steel. |
| Work environment | 0°C-40°C |
| Working pressure | 105 kPa / 121°C (at standard atmospheric pressure) and 210 kPa / 134°C (at standard atmospheric pressure) |
| Humidity during sterilization | ≥80% |
| Display screen | 4.3-inch LCD with resolution ≥480 x 272 |
| USB interface | Supports USB export of sterilization records |
| Maximum working pressure | 0.25 MPa |
| Applicable items | Surgical instruments, dental handpieces, dressings, glassware, cavity instruments, heat-resistant plastics and other items that can withstand 121°C or 134°C sterilization |
| Pulsating vacuum method | Perform pre-vacuum pulsation three or more times to efficiently expel cold air and ensure steam penetration |
| Drying function | Thermal vacuum drying or pulsating negative-pressure drying, with low residual moisture and drying time adjustable between 600 to 2000 seconds |
| Control method | PLC automatic control, LCD screen with touch buttons |
| Safety protection | Overheat protection, overpressure protection, low water level/anti-dry burn protection, safety door lock (door cannot be opened if pressure is not released), automatic pressure relief valve |
| Relief valve | When the pressure in the sterilization chamber exceeds 0.25 MPa, the safety valve automatically releases the excessive pressure, ensuring reliable performance |
| Printer | Using a micro printer, the data of each minute during the whole process of sterilization can be printed and permanently stored |
| Internal steam venting | Built-in condensate collector. Waste steam is condensed and discharged by the condenser. |
| Alarm system | The equipment is equipped with an automatic detection and alarm system. |
| Test function | Supports Bowie & Dick (BD) testing and vacuum leak testing. |
| Category | Class II medical devices. |
Product Features
Key design, performance, usability, and safety advantages.
This series of compact steam sterilizers (hereinafter referred to as sterilizers) are precision devices designed for physicians or their assistants to perform simple, rapid, and effective sterilization tasks under physician supervision.
Featuring a microprocessor-based intelligent control system, the sterilizer offers user-friendly operation with real-time parameter and status display.
It automatically diagnoses malfunctions and provides over-temperature / over-pressure protection to ensure reliable sterilization and disinfection.
The sterilizer consists of a sterilization chamber, door assembly, heat insulation on layer, piping system, safety valve, control system, water storage tank, wastewater tank, and steam generator.
The triple-pulse vacuum technology minimizes residual air in the chamber, enhancing sterilization efficacy.The high-definition LCD display clearly shows all sterilization data, enabling better control of the sterilization process.
