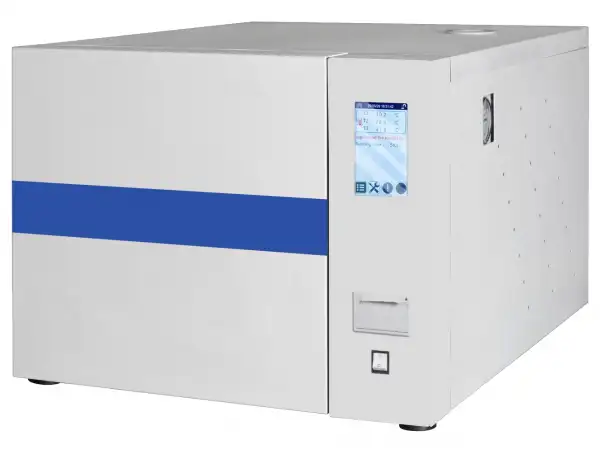

Benchtop Autoclave BJU-10401
Class N Benchtop Autoclave
Benchtop Class N Autoclave uses saturated steam as the sterilization medium,exhausts the cold air by gravity. So that the saturated steam fully penetrates the surface of the items. By utilizing high-temperature saturated steam under high pressure, it effectively kills all microorganisms and their spores, providing reliable sterilization results. It is...
Key Features
- Multi Safety Features
- Overheat protection:automatically cutting off heating with audible and visual alarms when the autoclave is overheated.
- Electric interlock safety : preventing from starting a cycle if the door is not properly locked or from opening if the chamber is pressurized or the power is disconnected.
- Anti-burning protection:
SKU: BJU-10401
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BJU-10401 |
| Capacity | 45L |
| Sterilization Temperature | 105-136°C |
| Working Pressure | 0.23 MPa |
| Features | |
| External Size (WxDxH) | 870 x 600 x 520 mm |
| Chamber Size (ØxH) | 316 x 590 mm |
| Chamber Material | SUS304 |
| Sterilization Temperature | 105-136°C |
| Designed Temperature | 150°C |
| Max. Working Temperature | 136°C |
| Temp. Accuracy | 0.1°C |
| Temp. Uniformity | ±0.5°C |
| Designed Pressure | 0.3 MPa |
| Sterilization Time Range | 0.23 MPa |
| Temp. Controller | PID control by microprocessor |
| Display | LCD touch screen |
| Drying Function | YES |
| Drying Time | 15 min |
| Sterilization Program | • Dressings/Fabric program• Medical instrument program• Rubber program• Liquid program• DIY program |
| Consumption | Built-in water tank |
| Power Supply | 3.6 kW |
| Standard Sterilization Shelf | AC 220/110 V, 50/60 Hz |
| Water Injection Method | 1 pcs SS shelf |
| Optional Accessory | Printer |
| Net Weight | 65 kg |
| Gross Weight | 120 kg |
| Shipping Size (WxDxH) | 1150 x 700 x 700 mm |
Product Features
Key design, performance, usability, and safety advantages.
Multi Safety Features
Overheat protection:automatically cutting off heating with audible and visual alarms when the autoclave is overheated.
Electric interlock safety : preventing from starting a cycle if the door is not properly locked or from opening if the chamber is pressurized or the power is disconnected.
Anti-burning protection:
Door-temperature interlock safety: preventing explosion of liquids if the liquid's temperature is not cooled down the safe limit (20 °C lower than the local boiling point).
Automatically cutting off heating with audible and visual alarming when the autoclave is lacking water.
Steam pressure safety valve: automatically works when the chamber pressure exceeds the limit.
Electrical circuit safety device for over-current and shortcut protection.
Automatic operation of sterilization (heating, sterilization, steam discharge and drying) can be easily set and monitored by the LCD touch screen.
Built-in steam generators prevent the media from contamination.
Buzzer for working errors and the end of the cycle.
Automatic atmospheric pressure adjustment for the installation and operation in plateau areas.
Standard with printer, real-time record sterilization process, error and alarm information.
Applications Explore common laboratory, research, industrial, and process applications.
It is widely used in fields such as pharmaceuticals, biotechnology, and laboratories for sterilizing items. such as dressing/fabrics, medical instruments, rubber, and liquids.
