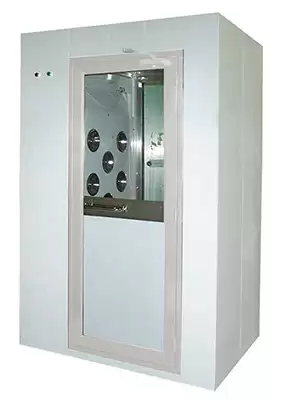

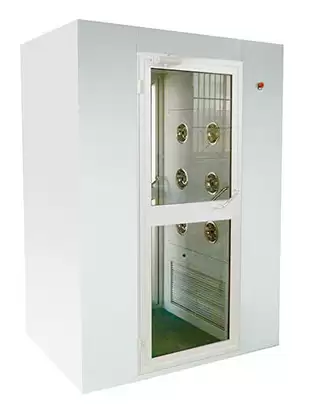

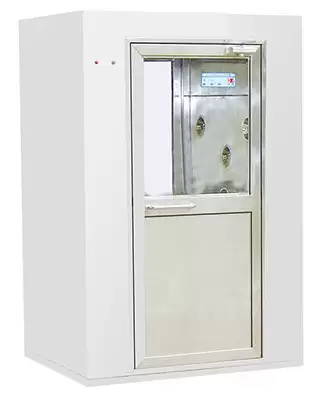

Air Shower BASB-101
Air Shower
- 1. Photoelectric sensor, automatic blowing.
- 2. Adopt with circulation wind to ensure the cleanness of shower area under non-shower status.
- 3. Double doors by electric interlock.
- 4. LED display with adjustable blowing time (0~99s).
- 5. HEPA Filter, Class 100 cleanness.
Old SKU: BEM1CK1
Get Quote
Download Catalog
Specifications
| Model | BASB-101 |
| External Size(W*D*H) | 1300*1000*2050mm |
| Internal Size(W*D*H) | 800*900*1930mm |
| HEPA Filter | 99.995% efficiency at 0.3μm |
| Spraying Wind Speed | 25m/s |
| Air Shower Time | 0~99s(adjustable) |
| No.of SS Nozzles | 6 |
| Fluorescent Lamp | 12W*1 |
| Consumption | 550W |
| Cabinet Material (Optional) | 1. Full cold-rolled steel with powder coating.2. Internal stainless steel, external with cold-rolled steel.3. Full stainless steel. |
| Door Material (Optional) | 1.Cold-rolled steel with powder coating.2. Stainless steel. |
| Chassis | Stainless steel. |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Gross Weight | 300kg |
| Package Size(W*D*H) | 1400*1200*2200mm |
Features
1. Photoelectric sensor, automatic blowing.
2. Adopt with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors by electric interlock.
4. LED display with adjustable blowing time (0~99s).
5. HEPA Filter, Class 100 cleanness.
2. Adopt with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors by electric interlock.
4. LED display with adjustable blowing time (0~99s).
5. HEPA Filter, Class 100 cleanness.
Applications
Air shower is a necessary passage for people entering clean room in order to minimize the amount of particulate contaminant, to achieve workplace strict clean purification standards. Personnel move through the air shower while particulate contaminants are blown off by the clean high-speed air. Then the dust cannot be brought into clean area.
