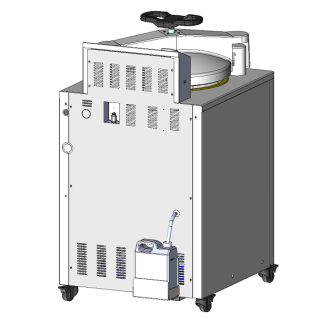

Vertical Autoclave BAVT-303-A
- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
We offer a variety of vertical laboratory autoclaves for general purpose sterilization applications. Customers can choose from the range depending upon their application, volume and budgetary requirements. Features are designed specifically for lab based sterilizations used in research laboratories, pharmaceuticals, microbiology labs, food and chemical industries. High performance, reliable results and a longer life makes it an ideal choice.

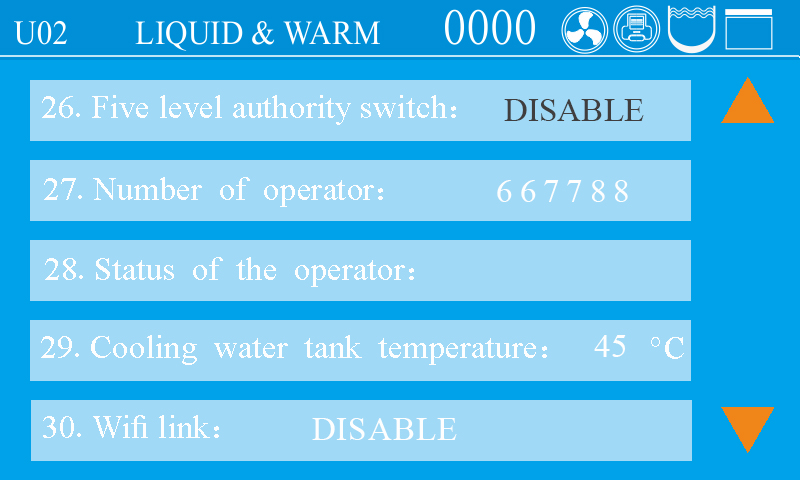

- Microcomputer control system
- Unique anti scald design chamber for corrosion resistance
- Stainless steel chamber

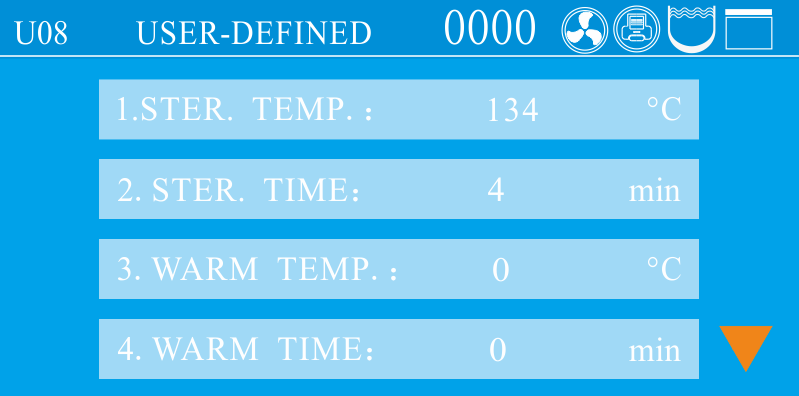

- Five sterilization modes
Specification
Features
ApplicationsAccessories Optional Accessories
| Capacity | 80 L |
| Function | Fully automatic, Drying function |
| Temperature Range | 5°C-138°C |
| Sterilization Temperature | 105-135°C |
| Warming Temperature | 45-60°C |
| Warming Time | 1-9999 min |
| Melting Temperature | 60-100 |
| Melting Time | 1-300 min |
| Humidity Range | 10%-85% RH |
| Working Pressure | 0-0.6 MPa |
| Chamber Dimension | 400x700 mm |
| Overall Dimension (LxWxH) | 620x680x1040 mm |
| Weight | 140/180 kg |
| Power | 4600 W |
| Power Supply | 220 V, 60Hz |
- Microcomputer control system
- Unique anti scald design chamber for corrosion resistance
- Stainless steel chamber
- Five sterilization modes

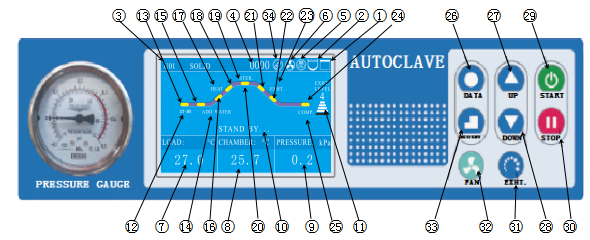

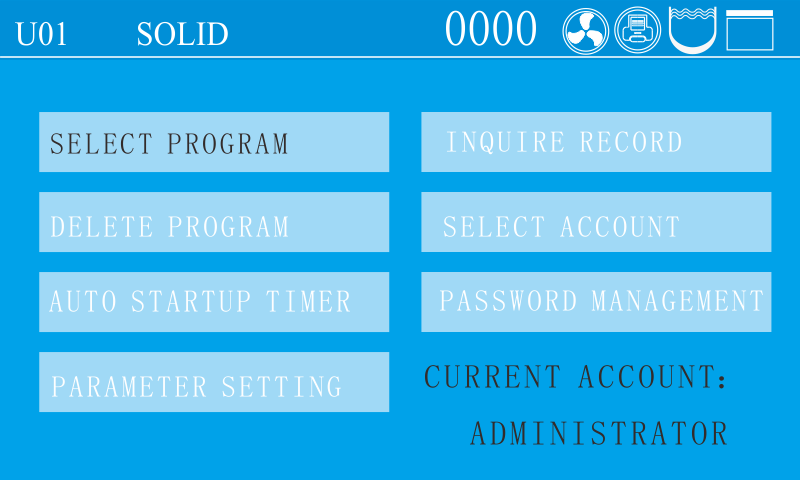

- User friendly control panel
- Multi layered pressure protection
- Fully automatic internal discharge control embedded with a steam trapping bottle
- Automatic checking of locking condition of cover

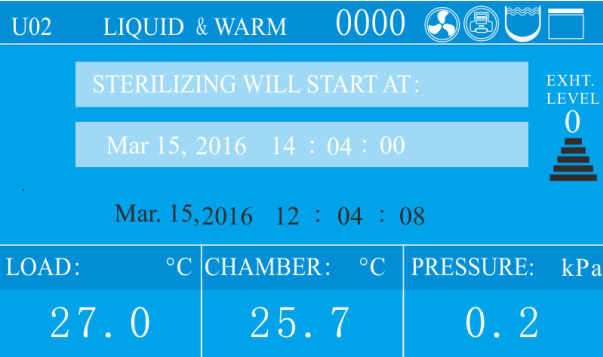

- Automatic sterilization according to preset time

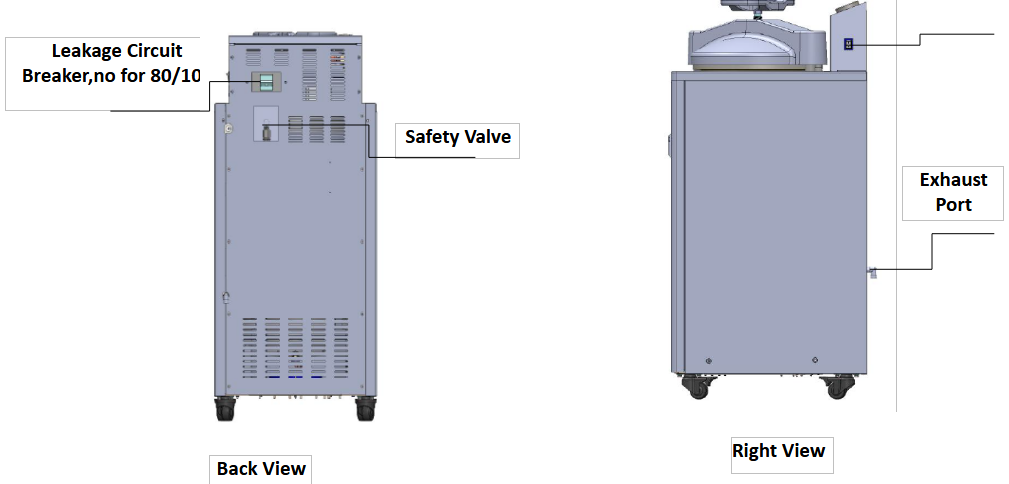

- Safety device: Self-induction pressure interlocking device, over temperature protection system, dry scorch protection system, overpressure protection, safety valve, over current and short circuit protection, cover inspection system, leakage protection device, anti-scald safety protection and automatic troubleshooting system
Food industry, Chemical industry, Research, Laboratory, Pharmaceutical
| Accessory Code | Name |
| 1702806006 | Stainless steel baskets |
| 1702806007 | Drainage hose |
| 1702806008 | Exhauset bottle |
| Accessory Code | Name |
| 1702806009 | Printer |
| 1702806010 | Printing set |
| 1702806011 | Load thermometer |
| 1702806012 | Cooling fan |
| 1702806013 | Temperature controller |
| 1702806014 | Temperature sensor |
| 1702806015 | Pressure Sensor |

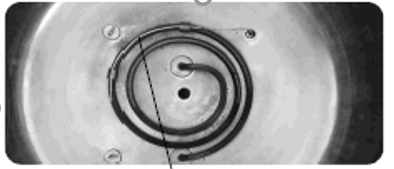

| 1702806016 | Heater |

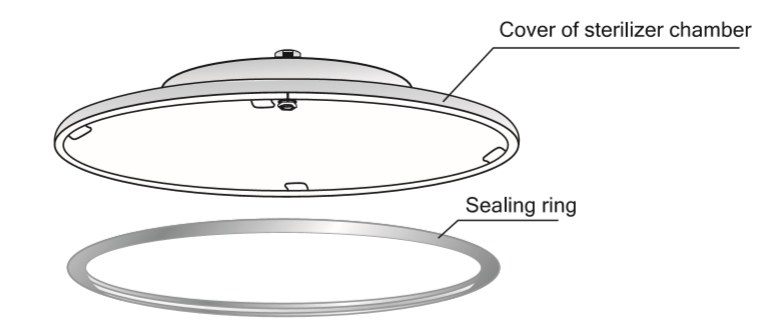

| 1702806017 | Sealing ring |
| 1702806018 | Pressure gauge |
| 1702806019 | Stainless steel pail |
| 1702806020 | Relay |
| 1702806021 | Main board |
| 1702806022 | Display board |
| 1702806023 | Jiggle switch |
| 1702806024 | Handle |
| 1702806025 | Pressure switch |
| 1702806026 | Solenoid Valve |
