Muffle Box Furnace BFMF-1100-5B

Muffle Box Furnace BFMF-1100-5B

  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards
Designed for minimum space requirements, our muffle furnaces work effortlessly at high temperatures and give reliable results. Equipped with electronic controller and memory to store different programs, it makes the operation user friendly. Chambers are crafted for heavy duty operation and minimize heat loss.

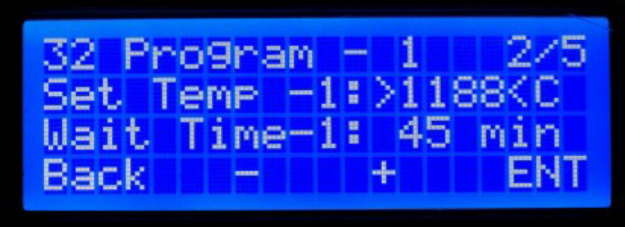

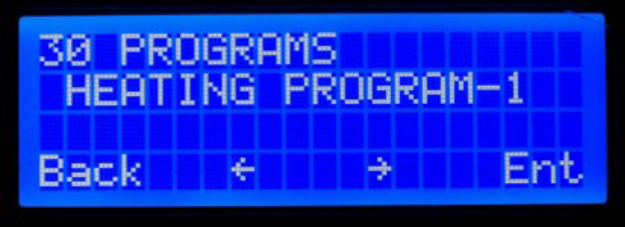

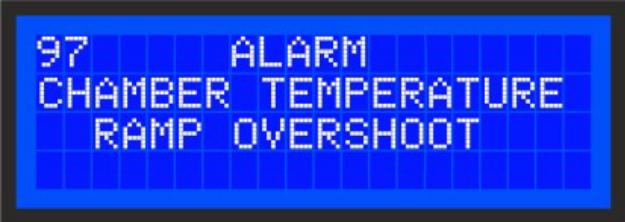

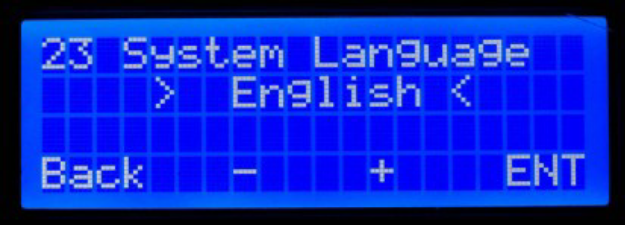

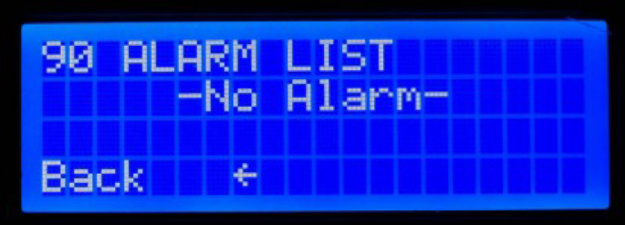

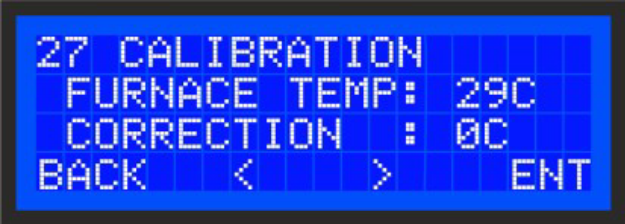

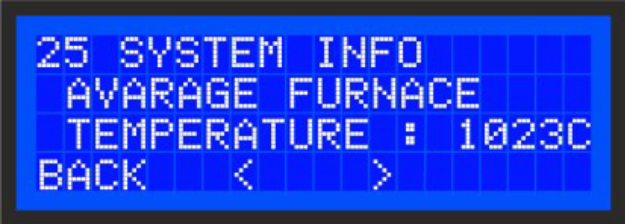

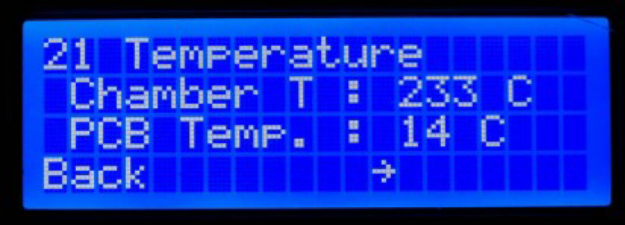

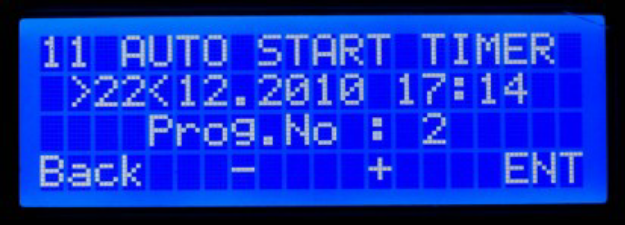

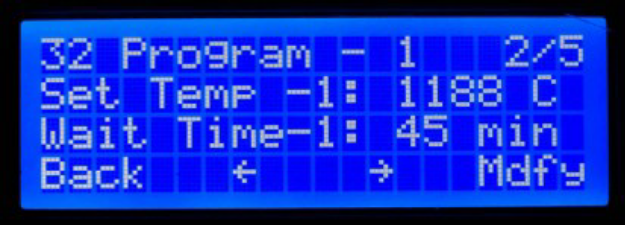

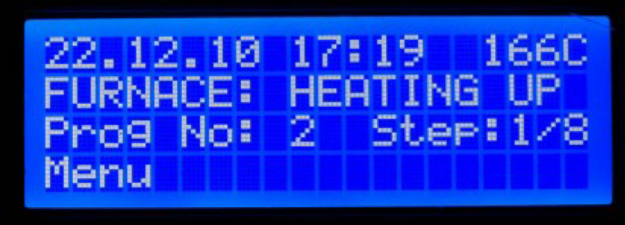

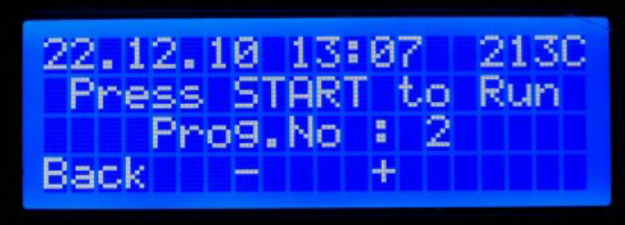

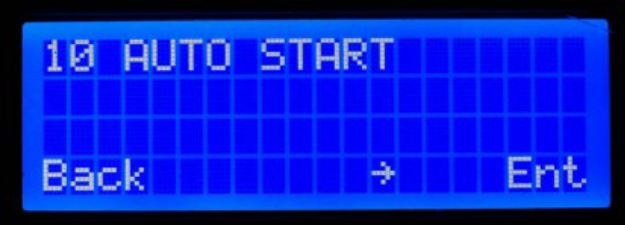

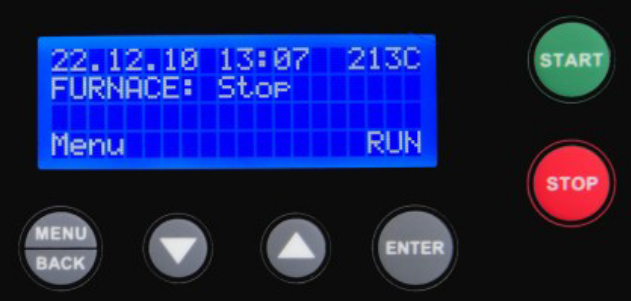

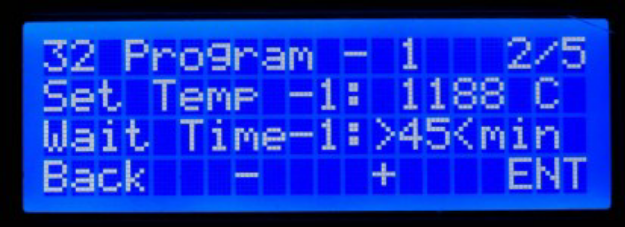

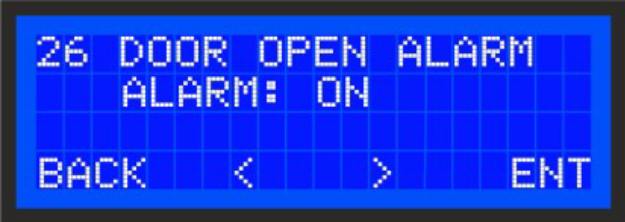

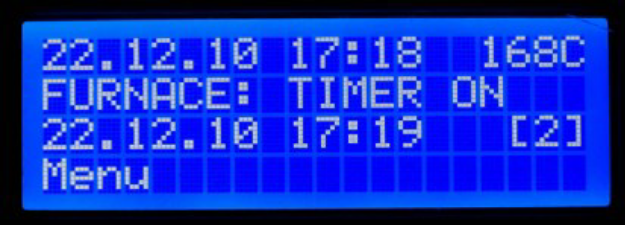

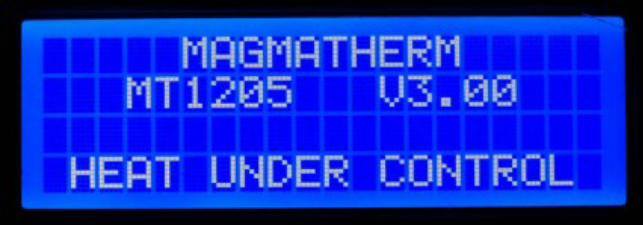

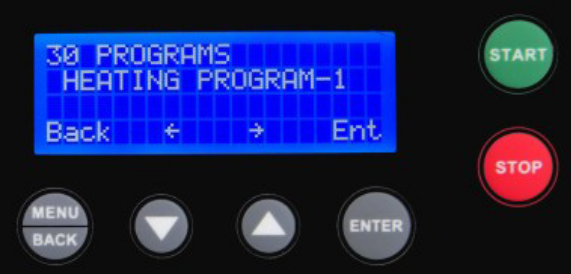

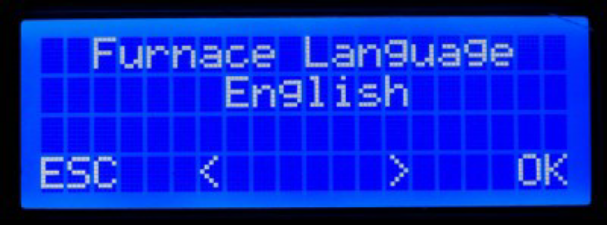

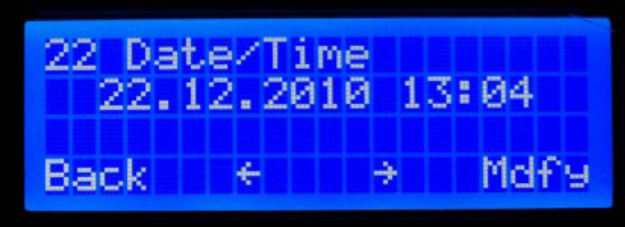

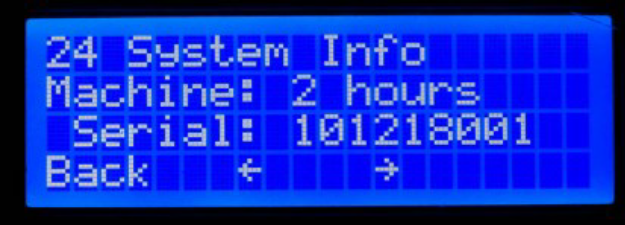

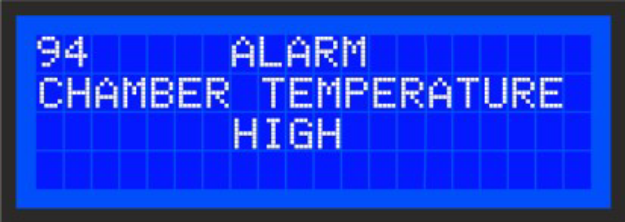

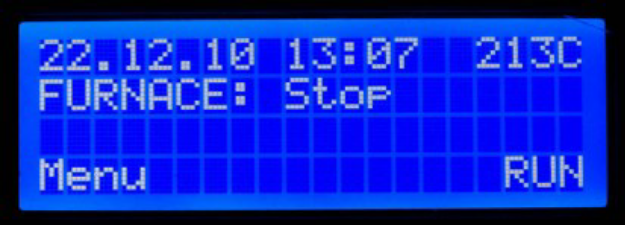

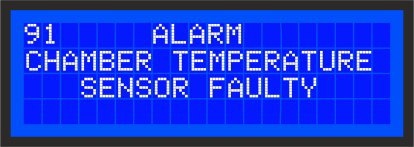

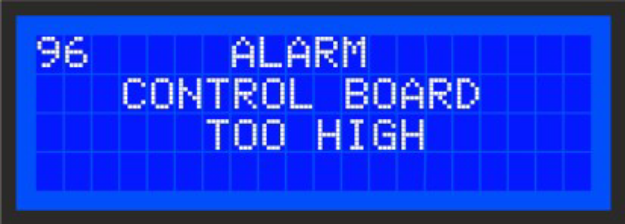

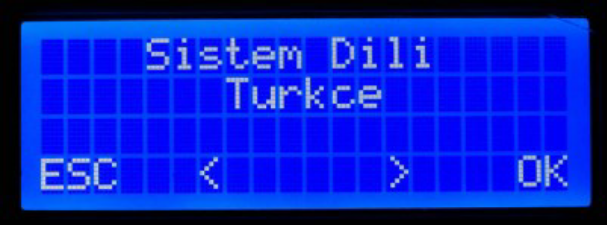

  • Programming with Easy-to-Understand Menu on 4-Line LCD Display
  • Suitable for all Kinds of Processes such as Ash Analysis, Heat Treatment, Sintering, Preheating, Melting, Oxidation
  • Durable Inner Chamber Made of Light Isolation Bricks
  • Accurate Measurement and Temperature Control with K Type Thermocouple
Instant Quote
Specification Features Applications

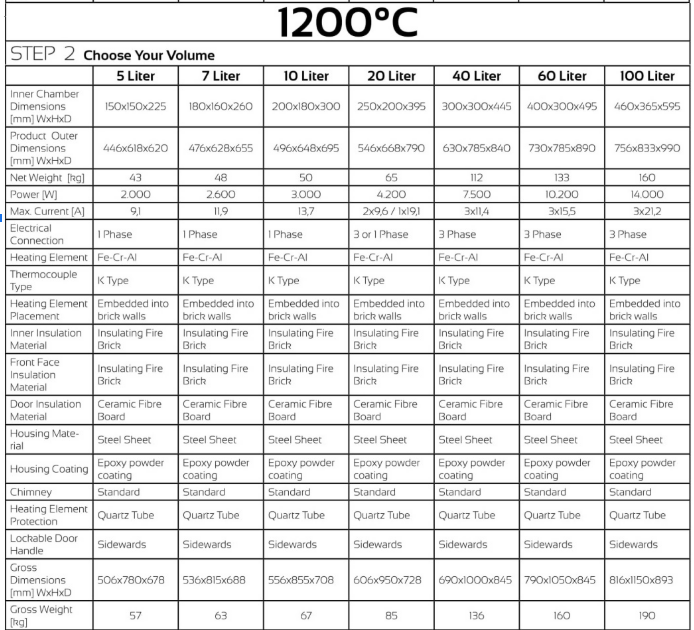

Capacity5 L
Maximum Temperature1100°C
Working Temperature1100°C
Control UnitB2

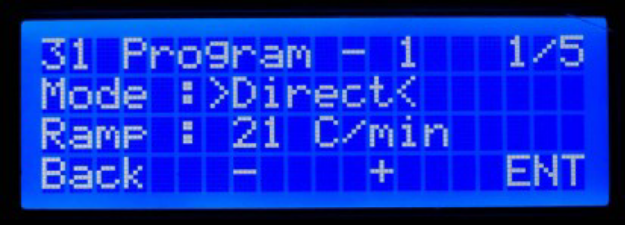

Controller Description4x20 LCD / 4 Steps 2 Prog

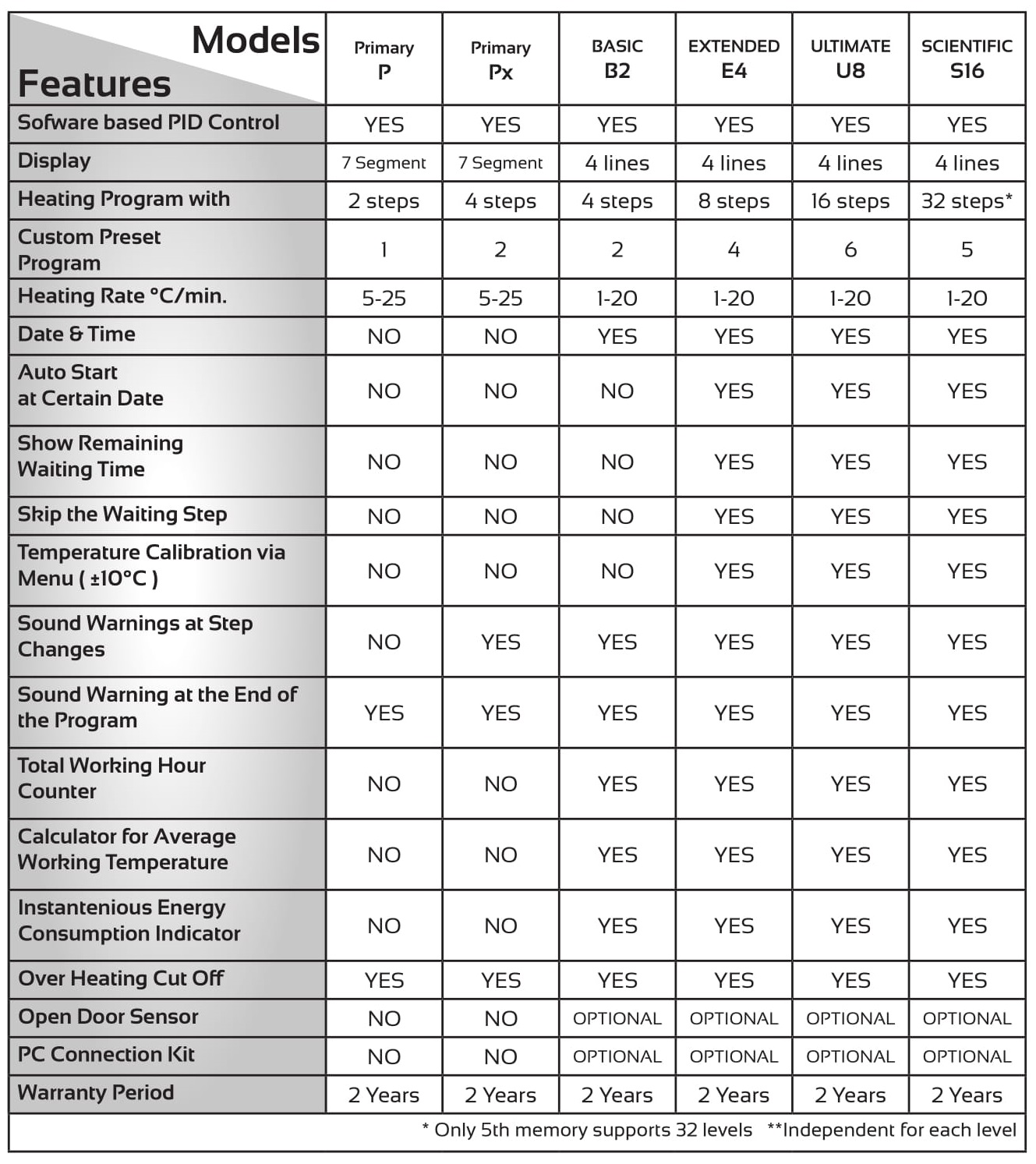

Software OptionsB2, E4, U8, S16
Control Accuracy±1°C
Front Face Insulation MaterialCeramic Fire Brick
Door Insulation MaterialCeramic Fibre Board
Housing MaterialSteel Sheet
Housing CoatingEpoxy Powder Coating
ChimneyStandard
Heating Element ProtectionQuartz Tube
Lockable Door HandleSidewards
Inner Insulation MaterialInsulating Fire Brick
Heating Element PlacementEmbedded into Brick Walls
Thermocouple TypeK Type
Heating Element TypeFe-Cr-Al
Inner Dimension (WxDxH)150x150x225 mm
Outer Dimension (WxDxH)446x618x620 mm
Gross Dimensions (WxDxH)506x780x678 mm
Net Weight43 Kg
Gross Weight57 Kg
Power2000 W
Maximum Current9.1 A
Electrical Connection1 Phase
Power Supply220V / 50Hz

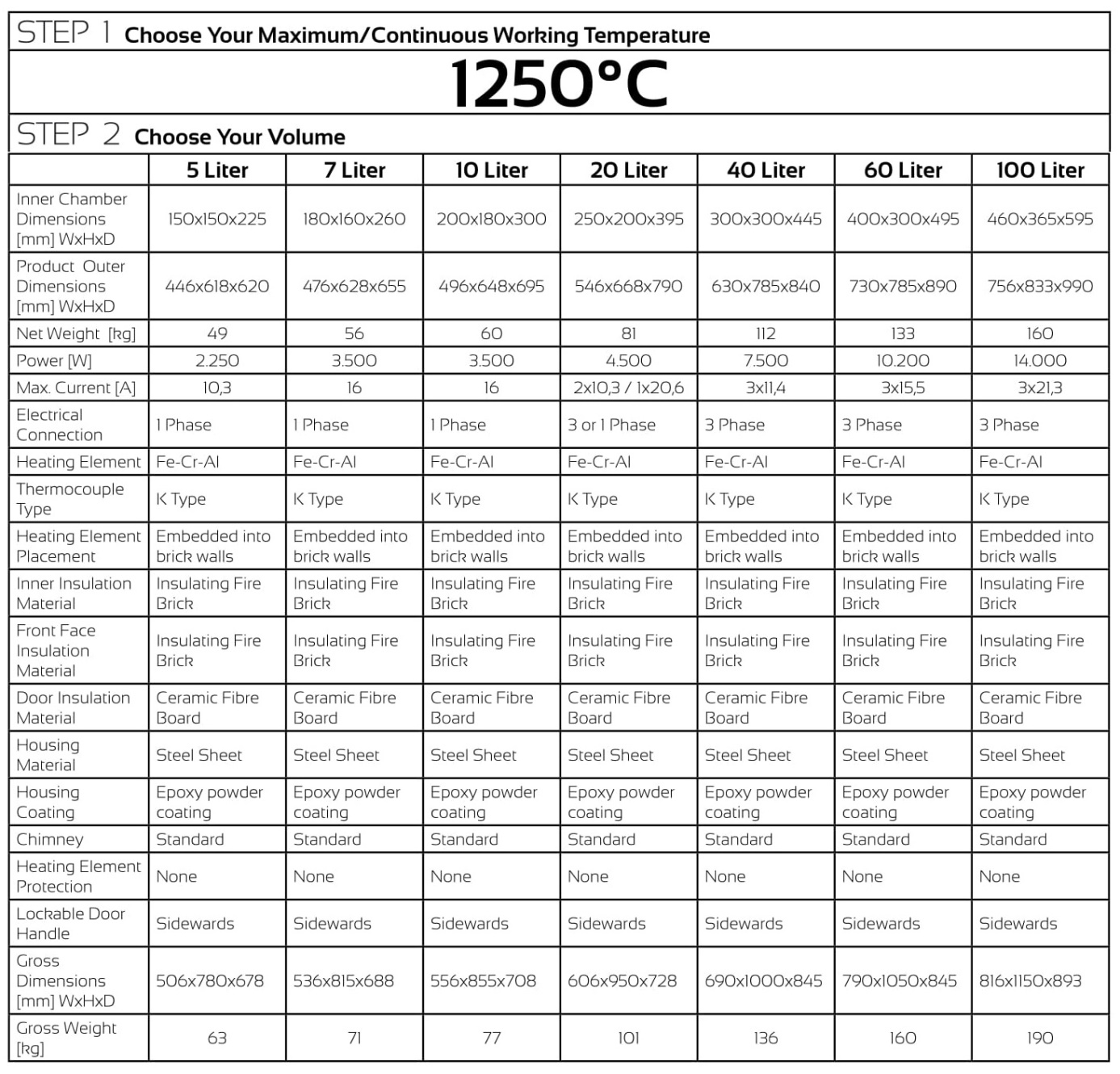

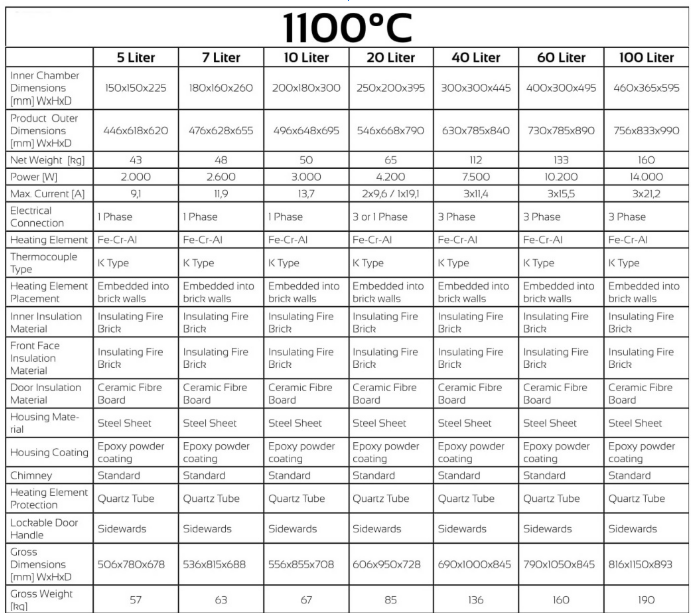

NoteAvailable model with capacity 7L, 10L, 40L, 60L
