Muffle Box Furnace BFMF-1100-3A
- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Designed for minimum space requirements, our muffle furnaces work effortlessly at high temperatures and give reliable results. Equipped with electronic controller and memory to store different programs, it makes the operation user friendly. Chambers are crafted for heavy duty operation and minimize heat loss.
- Economical Series Ash Furnace
- Ideal Easy Programming for Any Kind of Process such as Ash Analysis of Food, Plastic, Other Organic Materials
- User Friendly Interface
- Start/Stop with One Touch
Specification
Features
Applications
| Capacity | 3 L |
| Maximum Temperature | 1100°C |
| Working Temperature | 1050°C |

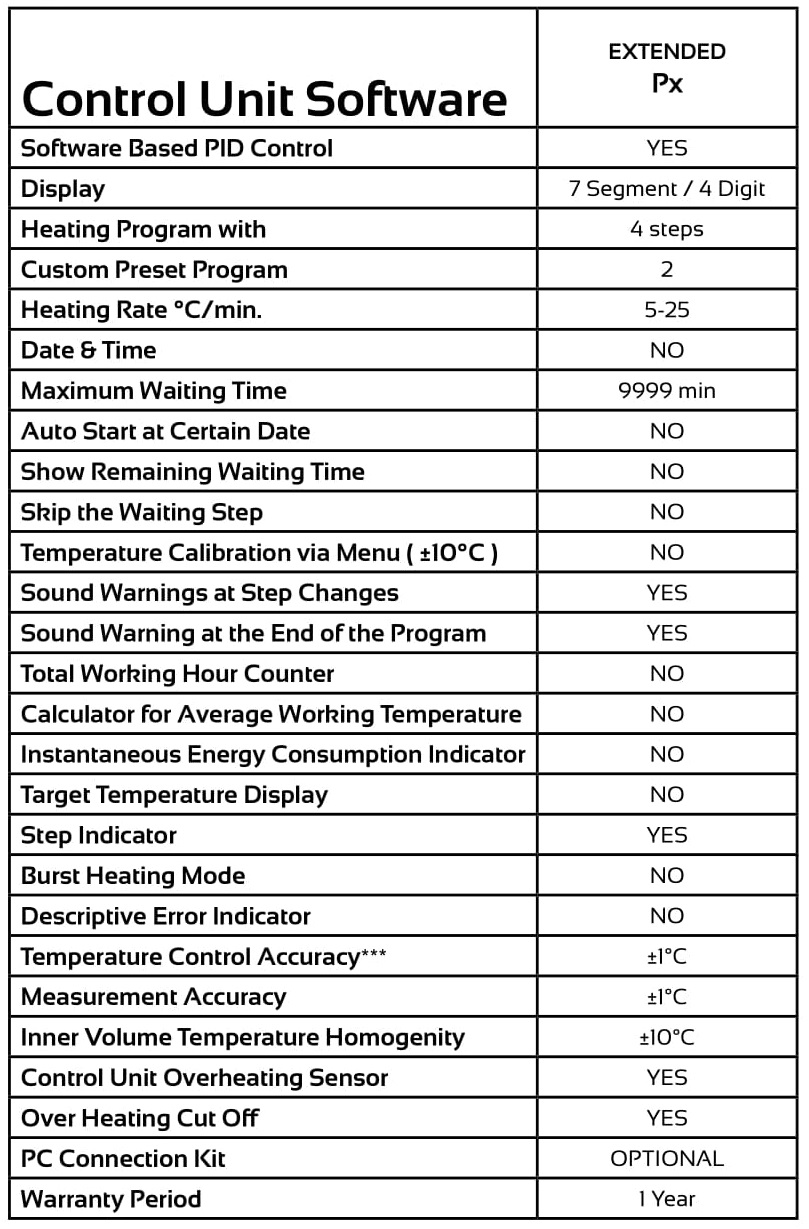

| Control Unit | Px |

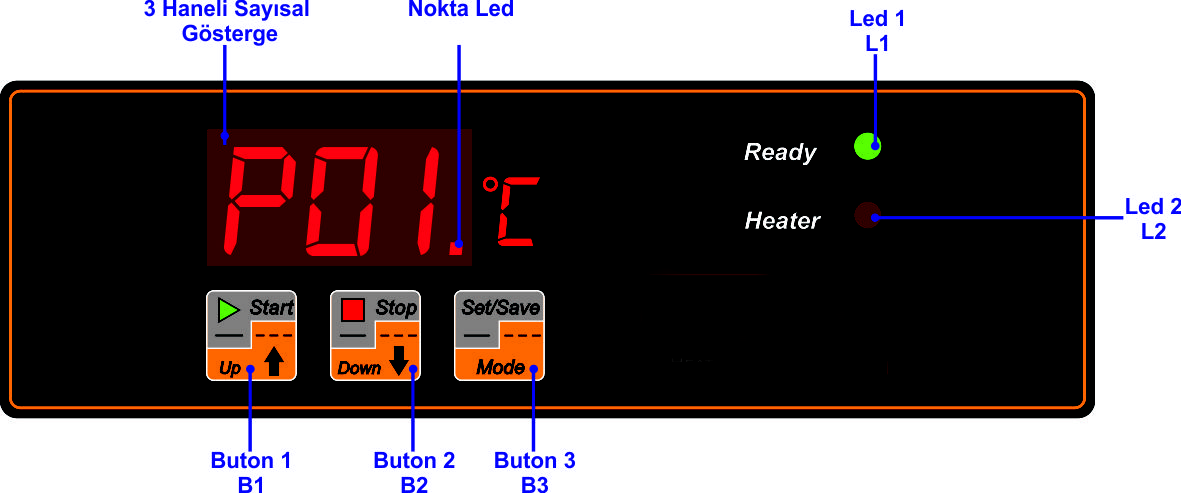

| Controller Description | 7 Seg. Display / 4 Steps 2 Prog |
| Software Options | Px |
| Control Accuracy | ±1°C |
| Front Face Insulation Material | Ceramic Fibre Board |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy Powder Coating |
| Chimney | Standard |
| Heating Element Protection | Quartz Tube |
| Lockable Door Handle | Sidewards |
| Inner Insulation Material | Insulating Fire Brick |
| Heating Element Placement | Embedded into Brick Walls |
| Thermocouple Type | K Type |
| Heating Element Type | Fe-Cr-Al |
| Inner Dimension (WxDxH) | 130x105x230 mm |
| Outer Dimension (WxDxH) | 384x470x475 mm |
| Gross Dimensions (WxDxH) | 425x640x515 mm |
| Net Weight | 22 Kg |
| Gross Weight | 35 Kg |
| Power | 1350 W |
| Maximum Current | 7:00 AM |
| Electrical Connection | 1 Phase |
| Power Supply | 220V / 50Hz |
| Note | Available model with capacity 5L, 16L |
- Economical Series Ash Furnace
- Ideal Easy Programming for Any Kind of Process such as Ash Analysis of Food, Plastic, Other Organic Materials
- User Friendly Interface
- Start/Stop with One Touch
- 7-Segment LED Display
- Homogeneous Heat Distribution
- Unique Insulation Design
- Minimal Designed for Space-Saving in the Laboratory
- Low External Surface Temperature with Dual Layer Housing
- Durable Inner Chamber Made of Light Isolation Bricks
- New Monoblock Design
Ideal for material testing, ashing, annealing loss determination, chemical analysis, reaction studies, metallurgical research and rapid heat processes.
