Horizontal Gel Electrophoresis BGEL-401
- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Gel instrument is a technique used in laboratory to separate charged molecules like DNA, RNA and proteins according to their size. Gel electrophoresis instruments are commonly used to run and compare DNA samples.
- New and unique appearance, mini and portable; The electrophoresis tank and power can be separated
- The cover with safely design, flip cover immediately power off, to ensure safety;Transparent cover and open hole design, easy to heat dissipation and observation; Top handle design, easy to pick and place
- With seven output voltages, it can be called with one button, which is convenient and fast, saving standby consumption
- Specially designed Electrophoresis shape, reducing the temperature difference between the buffer, while the heat benefit is improved. Put the gel into a limited
Specification
Features
Applications Optional Accessories
| Capacity | Max.500ml |
| Multi-channel suitability | Suitable for multi-channel pipettor |
| Timing function | 1min~99h59min or continu, with pause function |
| Security Settings | The power is automatically paused when the cover is lifted |
| Storage function | Automatically memorize the previous operating voltage and time |
| Inner diameter dimension | 150x150x47 mm |
| Dimensions | 260x170x68 mm |
| Input power | AC110V,50/60Hz |
| Net weight | 0.78kgs |
| Output voltage | Constant peak voltage (140V) , impulse control |
| Optional output voltage | 135V 100V 70V 50V 35V 25V 18V |
- New and unique appearance, mini and portable; The electrophoresis tank and power can be separated
- The cover with safely design, flip cover immediately power off, to ensure safety;Transparent cover and open hole design, easy to heat dissipation and observation; Top handle design, easy to pick and place
- With seven output voltages, it can be called with one button, which is convenient and fast, saving standby consumption
- Specially designed Electrophoresis shape, reducing the temperature difference between the buffer, while the heat benefit is improved. Put the gel into a limited
- position without drift
- With the pause function, timing function, can leave after press the start button, with Alarm function, buzzer alert at the end
- Highlight digital tube displays the set parameters, default remember the output voltage and time Settings of the previous operation
- When the electrophoresis current exceeds the peak current, will automatically adjust the voltage to reduce the current value, improve the experimental reproducibility
- Equipped with variety of specifications of gel trays / combs, compatible with a variety of experimental needs,compatible with high-throughput electrophoresis and multi-channel pipette operation
Forensic, molecular biology, genetics, microbiology labs, gel electrophoresis instruments
| Accessory Code | Name | Dimension | Quantity |
| 4400906006 | Small size plate for gel | 60 mmx60 mm | 2 |
| 4400906007 | Medium size plate for gel | 120 mmx60 mm | 1 |
| 4400906008 | big size plate for gel | 120 mmx120 mm | 1 |
| 4400906009 | Gel Comb 1 | 1.0 mm thickness 25/11 teeth | 4 |
| 4400906010 | Gel Comb 2 | 1.5 mm thickness 18/8 teeth | 1 |
| 4400906011 | Gel Comb 3 | 1.5 mm thickness 13/6 teeth | 1 |
| 4400906012 | Gel Comb 4 | 2.0 mm thickness 3/2 teeth | 1 |
| 4400906013 | Base for gel making (double sides) | 138 mmx138 mmx36 mm | 1 |
Operating Manual for BGEL-401
Download Operating Manual PDF1. Introduction
2. Operation Instruction
2.1 Structure
2.2 Instrument Installation (Very Important！！！）
2.3 Operation Panel and Display Screen
2.4 Key Function
2.5 Operation Guide
Packing List
1. Introduction
BGEL-401 Horizontal Gel Electrophoresis is a one-body electrophoresis Unit, which has compact design, stable performance, easy operation and good reproducibility and cost performance. On one hand, unique design, it assure the uniformity of electric field in unit. On the other hand, as the bubble produced by platinum electrode is separated, buffer PH has good stability. It is widely used in chemical field, ideal for teaching, scientific research, food and medical treatment. Horizontal gel electrophoresis unit is mainly used for separation and test of nucleic acid.2. Operation Instruction

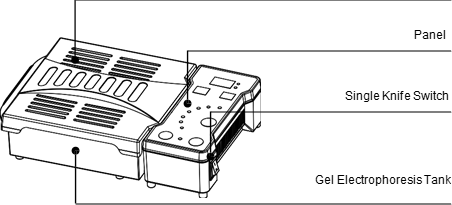

2.1 Structure
2.2 Instrument Installation (Very Important！！！）

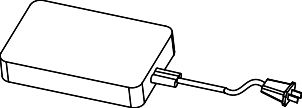

1. When input voltage is AC 220V, please connect the transformer input wire to the electricity grid, connect the output wire to the instrument.2. When input voltage is AC 110V, connect the instrument to the electricity grid directly.

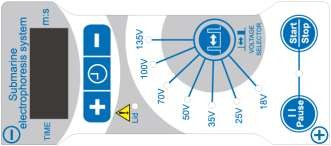

2.3 Operation Panel and Display Screen
2.4 Key Function
+ - The key to increase or decrease the setting value of time. Continuously pressing can increase or decrease it quickly. Maximum setting time is 99 minutes and 59 seconds.Start/Stop Start/Stop button. After desired speed and time are set, press to start operation. During operation, press it to stop operation.
Pause Short press the key into suspended state, instrument stops working, countdown also stops.
VOLTAGE SELECTOR Short press the key, it enters into switch status of 7 kinds of output voltages.
2.5 Operation Guide
1. Programme Seta) Open the power switch, with the sound of ”di”, the display screen will display the value set for last time, the instrument goes into the initial state.
b) Press + or – of time to set the unit value, also increase or decrease from tens digit to hundreds digit. If pressing the key for 2 seconds, it can quickly adjust the value.
c) VOLTAGE SELECTOR Key, to switch the voltages, the voltage can switch to 18, 25,
35, 50, 70, 100, 135, the relevant light will be on when one voltage is choosen.
d) When the screen shows “OFF”, it means working time is infinite.
e) “Lid” light is on, it means lid is closed correctly. If the light is off, it means the lid is not
closed correctly and needs to be adjusted.
2. Instrument operation
a) Make sure the lid is closed correctly before the instrument starts to work.
b) When press the key “start”, the light is on. When press the key “Pause”, its light is flickering.
3. Warning：
- Don’t move the instrument when it is working.
- Don’t open the lid when it is working.
4. Maintenance
Use dry cloth and non-corrosive (PH=7±1) to clean the instrument surface.
Make sure all the elements are completely dry before the instrument starts. Don’t
put the instrument into the liquid or get wet with liquid (The instrument must be power off when it is being cleaned).
5.Parameter
| External Size：260X170X68（mm） | Power：≤60W |
| Input Power：AC110/220V, 50/60Hz | Fuse：1.0A |
| Output Voltage Range：18-135V | Timing Range：1S-99m:59S |
| Small Size Plate：124X59 | Big Size Plate：124X121.5 |
6. Accessories
| a) Small Size Plate：To produce small gel |  |
| b) Big Size Plate：To produce big gel |  |
| c) Comb：to make the marks when the gel is running |  |
| d) Division Plate：make the gel room to two parts |  |
| e) Gel Room：it can put one big size plate or two small size paltes. |  |
| f) Transformer：change AC220 to be AC110 |  |
Packing List
| No. | Name | Type | QTY | Unit | Remarks | |
| 1 | Horizontal Gel Electrophoresis | BGEL-401 | 1 | EA | ||
| 2 | Big Size Plate | 1 | EA | |||
| 3 | Medium Size Plate | 1 | EA | |||
| 4 | Small Size Plate | 2 | EA | |||
| 5 | Gel Room | 1 | EA | |||
| 6 | Division Plate | 1 | EA | |||
| 7 | Comb | 7 | EA | |||
| 8 | Transformer | 220 to110 | 1 | EA | No need if Voltage is 110V | |
| 9 | Power Line | 220V/110V 1A | 1 | EA | ||
| 10 | Performance Test Statement | 1 | EA | |||
| 11 | Operation Manual | 1 | EA | |||
| 12 | Warranty Card | 1 | EA | |||
| Charger：（Sign/Stamp） | Packing Date： | |||||
